    5 Micron Glass CNC Milling Lathe Grinder GS10 GS30 Optical Linear Scale

    Ask Lasest Price
    Brand Name : Easson
    Model Number : ES-14B
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    5 Micron Glass CNC Milling Lathe Grinder GS10 GS30 Optical Linear Scale

    Glass CNC Milling Lathe Grinder GS10 GS30 Optical Linear Scale



    Digital Readout Products Parameter


    ModelES-14B
    Axis number3 Axis
    Axis Display0.1μm, 0.5μm, 1μm, 5μm
    Signal InputA / B quadrature signal
    Power SupplyAC110 V - 220 V / 50Hz - 60Hz
    Weight (kg)3
    Input frequency2 MB Hz
    Operation KeyboardLight touch buttons
    Operating temperature0℃ - 45℃
    Storage temperature-40℃ - 55℃
    Relative humidity≤ 95%
    Inputs2 or 3 linear encoders
    EMC Standard

    IEC61000-4-2 / GB / T 17799-2

    IEC61000-4-4 / GB / T 17799-4

    IEC61000-4-5 / GB / T 17799-5





    Optical Linear Scale | Linear Scale | Optical Glass Scale Specification


    GS10GS11GS12GS13GS20GS21GS22GS23GS30GS31GS32GS33
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system45° five bearings supporting systemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel100-1200mmEvery 50mm per length Spec.Not availableEvery 50mm per length Spec.
    1300-3000mmNot availableEvery 100mm per length Spec.Every 50mm per length Spec. up to 500mm
    Accuracy100-450mm±8μm±5μm±8μm±5μm--±8μm±5μm±8μm±5μm
    500-800mm±10μm±8μm±10μm±8μm----
    1050-2000mm±15μm±12μm±15μm±12μm----
    1300-3000mm--±25μm--
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422TTLTTL422422

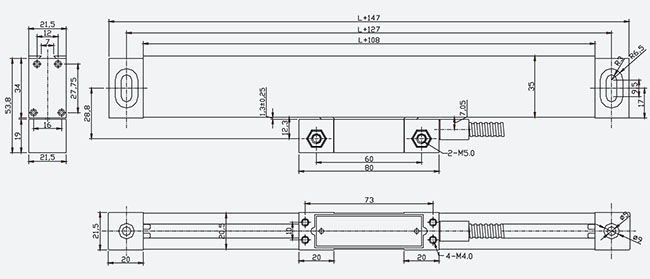

    Installation Dimensions



    GS10 / GS11 / GS12 / GS13 Series

    Easson GS20 1300-3000mm digital readout Linear Scale for machine tools


    GS30 / GS31 / GS32 / GS33 Series

    Easson GS20 1300-3000mm digital readout Linear Scale for machine tools


    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey


    Output Signal


    The A Qual B interface (TTL or differential TTL, D-TTL) is the most popular and simple linear scale / encoder signal interface for CNC machine or measuring instruments.


    Easson Linear Encoder Scale 50 - 1000 mm Digital Readout Systems For Machine Tools 4


    Advantage: Low cost; Very popular & simple.


    Shortfall:

    • Only one direction signal possible.

    • No Error detection, very poor reliability.

      Incremental signal only, no absolution reference.

      Very difficult for high speed & high resolution.



    100% Laser calibration


    All Easson optical linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
