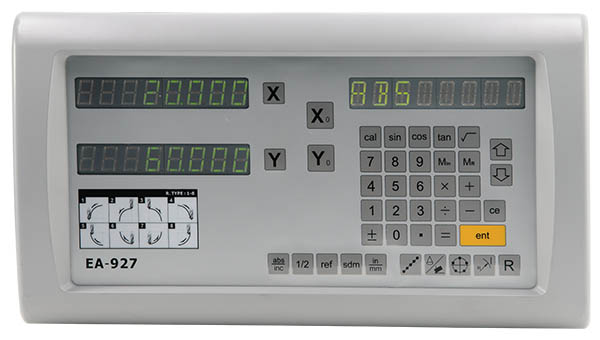

Milling Lathe Grinding 2 axis Aluminum Shell Digital Display Dro unit

Product Introduction

Features

Displayed as a 8 digits with green LED.
Aluminum casing,industrial quality.
8 kinds of operation language.
High integration makes performance stable.
Light touch button service life more than 100000 times.

Basic parameters are included as below:
1. Clear Zero
2. Metric / inches Display (mm / Inch)
3. Absolute / incremental (ABS / INC)
4. Power off Memory (30 subdatum)
5. 199 subdatum
6. Reference Memory (REF)
7. Build in Calculator
8. Pitch Circle Diameter (PCD)
9. Line Hole Positioning (LHOLE)
10. Simple “R” Function
11. Linear Error Compensation
12. Non Linear Error Compensation
13. Axis Speed Display
14. Radius / Diameter (Lathe function)
15. Z axis Summation(Lathe function)

EMC Testing equipment

Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:

IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )

Aging Test

.
Digital readout unit need to do the aging test, using 3 axis signal generator counting, make sure all couting reading correctly, high temperature test and load test for 72 hours before QC procedure.

Technical Specification

Connector interface

FAQ

1. Who we are?
Easson is a manufacturer in design and manufacturing precision measuring equipment. Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), Linear encoder glass scale.

2. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.

3. Did you accept OEM customized service?
Sure, we can provide not only typical products but also the products customized to customer's request based on the order quantity.

4. How can I send my enquiry?
You can contact us by email, phone call, message (Whats APP, WeChat, Skype).

5. Delivery time
Sea freight shipment normally is 30-45 days after receive the order comfirmation, small quantity for air freight is available to ship anytime.

6. Payment term
100% T/T payment, for others payment terms, welcome to contact us.

Easson was established since 1995.It is a high-tech enterprise specializing in design and manufacturing of precision measuring equipment, obtained more than 20 national invention and utility model patents. Our product field in DRO systems, precision optical profile projectors, video measuring machine and etc..

Easson's factory building is specifically design and built for the manufacturing of precision measuring equipment, has four Laser interferometers for being the company's length measurement standard and R&D.

Easson is one of the few companies in the industry that has its own high-precision grating master which use own fully-developed grating master lithography equipment, produce the absolute linear encoder and high accuracy CNC linear encoder.

Our quality management system has been assessed and registered by National Quality Assurance Ltd.(NQA) against the provision of ISO 9001:2015.

Strong Technical Capabilities And Scientific Research Resources

Over the years, the company has established a very close and effective cooperative relationship with scientific research institutions such as Xi'an Jiaotong University and Jilin University, taking advantage of the abundant talents and theoretical advantages of university scientific research institutions, combined with the company's long-term accumulated technology and practical experience in this industry , so that we have created many products that are leading the domestic industry.

In addition, the company actively participates in the scientific research and industrialization projects issued by the state and Zhuhai City.

For example, in 2011, the company participated in the "High-end CNC Machine Tools and Basic Equipment" led by Xi'an Jiaotong University and issued by the Ministry of Industry and Information Technology of China "Science and Technology Major Project. And combined with Tianjin University, Hefei University of Technology, Chinese Academy of Metrology... and other units jointly developed.

The company's AS-40 series grating ruler is one of the results of this project, which is industrialized by our company. And our company's EC-2 Pseudo-random absolute coding is one of the project achievements jointly developed by our company and Jilin University.

Actively participate in industry standard setting

Easson Measurement Technology Ltd. is one of the core members of the Digital Display Sub-Standard Committee of the National Measuring Tool and Measuring Instrument Standardization Technical Committee of China.

For a long time, it has actively participated in the formulation of various standards in the industry, and introduced the most advanced international standards in the industry. standards, and work together with peers to promote the development of the industry.

The company participated in the drafting of many national and industry standards, such as industry standard JB/T 10080.1-2011 "Graster Digital Display Instrument", JB/T10080.2-2011 "Graster Linear Displacement Sensor", etc. JB/T 11505-2012 "Displacement Sensor" Encoder CPE-Bus bidirectional serial communication protocol specification".....
