    Easson GS10 50-1000mm Sealed Digital Readout Linear Scale Encoder Cnc

    Ask Lasest Price
    Brand Name : Easson
    Model Number : GS10
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 3000 PCS per Month
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    Easson GS10 50-1000mm Sealed Digital Readout Linear Scale Encoder Cnc

    Easson GS10 50-1000mm Sealed Digital Readout Linear Scale Encoder Cnc



    GS10GS11GS12GS13GS30GS31GS32GS33
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting systemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel100-1200mmEvery 50mm per length Spec.Every 50mm per length Spec.
    1300-3000mmNot availableEvery 50mm per length Spec. up to 500mm
    Accuracy100-450mm±8μm±5μm±8μm±5μm±8μm±5μm±8μm±5μm
    500-800mm±10μm±8μm±10μm±8μm--
    1050-2000mm±15μm±12μm±15μm±12μm--
    1300-3000mm----
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422



    Installation Dimensions




    GS10 / GS11 / GS12 / GS13 Series


    GS30 / GS31 / GS32 / GS33 Series


    VS20 Series Long Scale Diagram




    Connector interface




    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    DIN 7PIN

    PINCableTTL
    1Orange0V
    2————
    3YellowA
    4GreenB
    5Red5V
    6BrownR
    7GroundGND
    CaseGroundGND



    Product Description




    Advanced Optical Measuring System


    The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.


    Double Seals Design

    The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.


    100% Laser calibration

    All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.

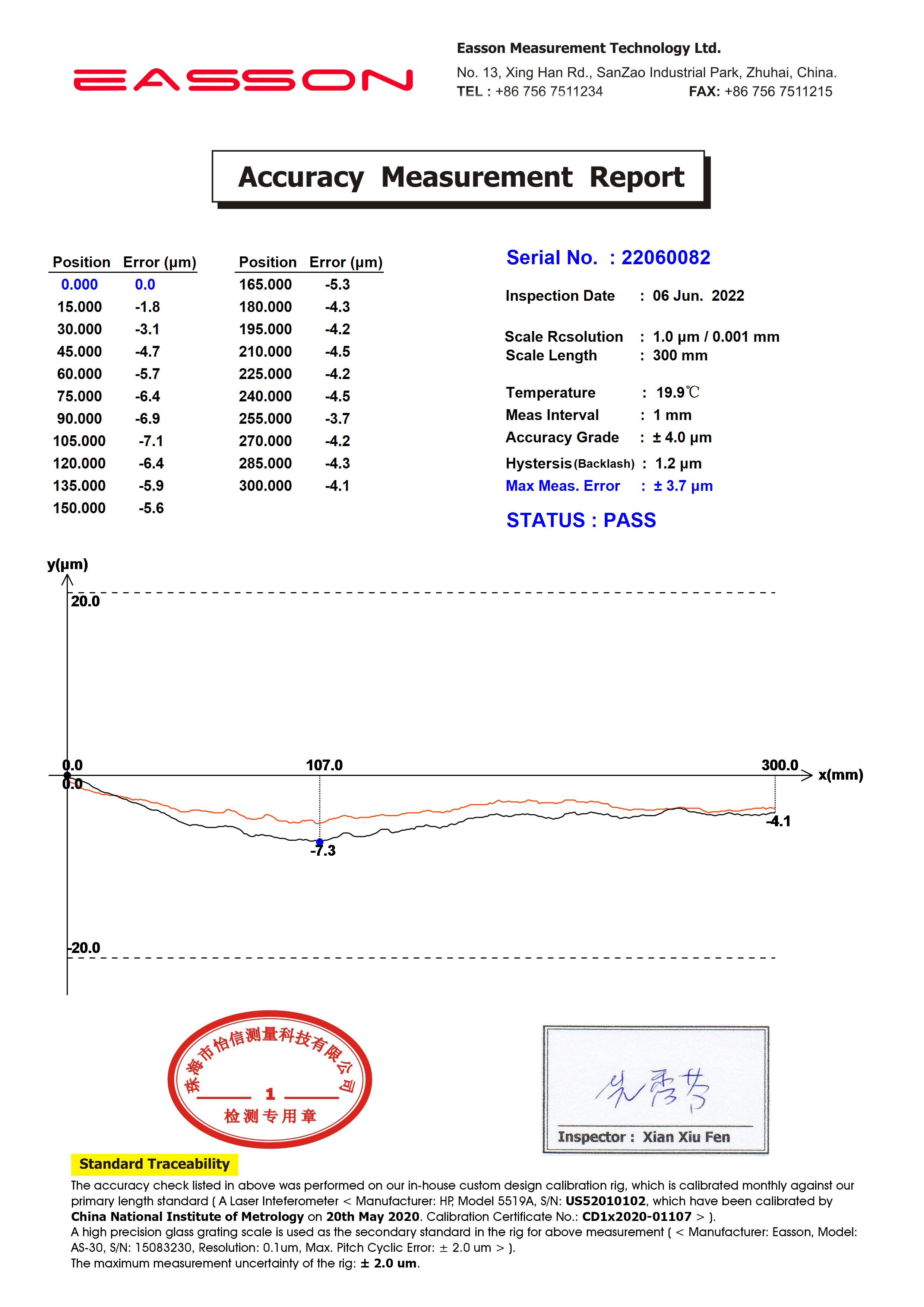

    Accuracy report

    Easson Each linear scale is printed with a QR code on the scale body, users can use mobile phone scan and view the accuracy report of the factory inspection.



    Easson's factory building is special design and built for the manufacturing of precision measuring instruments,

    two class 10,000 clean rooms and one under ground temperature control room inside the building, for the assembly the high precision components.


    Quality Assurance

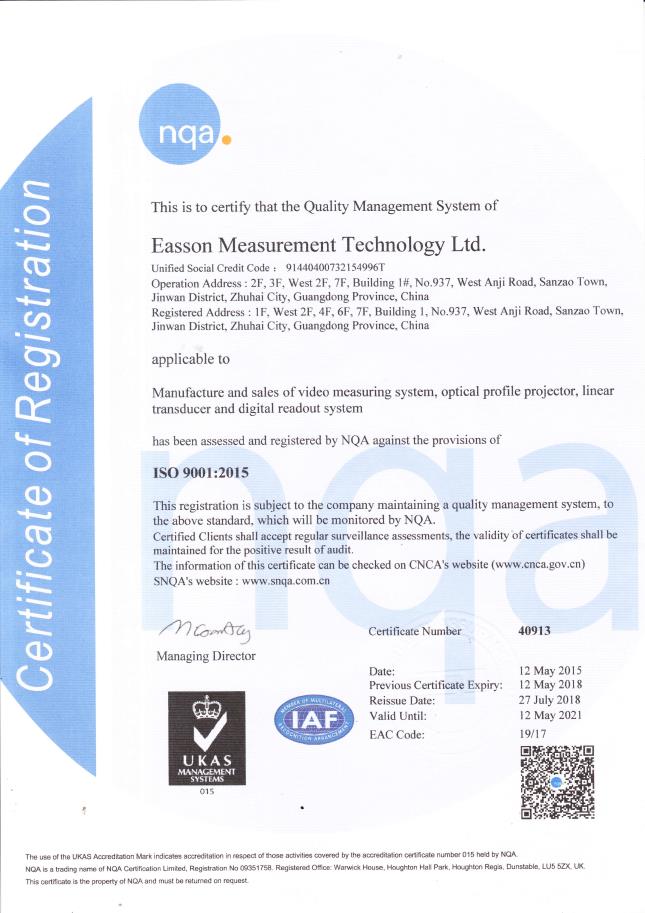

    Easson is implementing the total quality management system to our plant in China since 1998.

    Our quality management system has been assessed and registered by National Quality Assurance Ltd. (NQA) against the provision of ISO9001:2015

    Quality Easson GS10 50-1000mm Sealed Digital Readout Linear Scale Encoder Cnc for sale
