    5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder

    5um 1um Resolution Linear Scale Encoder For Lathe Milling Grinder


    Product Specification



    VS10VS11VS12VS13VS20VS21VS22VS23
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel50-1200mmEvery 50mmNot available
    1300-3000mmNot availableEvery 100mm
    Accuracy50-450mm±3μm - ±5μm--
    500-800mm±10μm±5μm±10μm±5μm--
    1050-2000mm±10μm±5μm±10μm±5μm--
    1300-3000mm--±10μm/m
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422



    Installation Dimensions




    VS20 Series





    Connector interface




    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    DIN 7PIN

    PINCableTTL
    1Orange0V
    2————
    3YellowA
    4GreenB
    5Red5V
    6BrownR
    7GroundGND
    CaseGroundGND



    Product Description



    Advanced Optical Measuring System

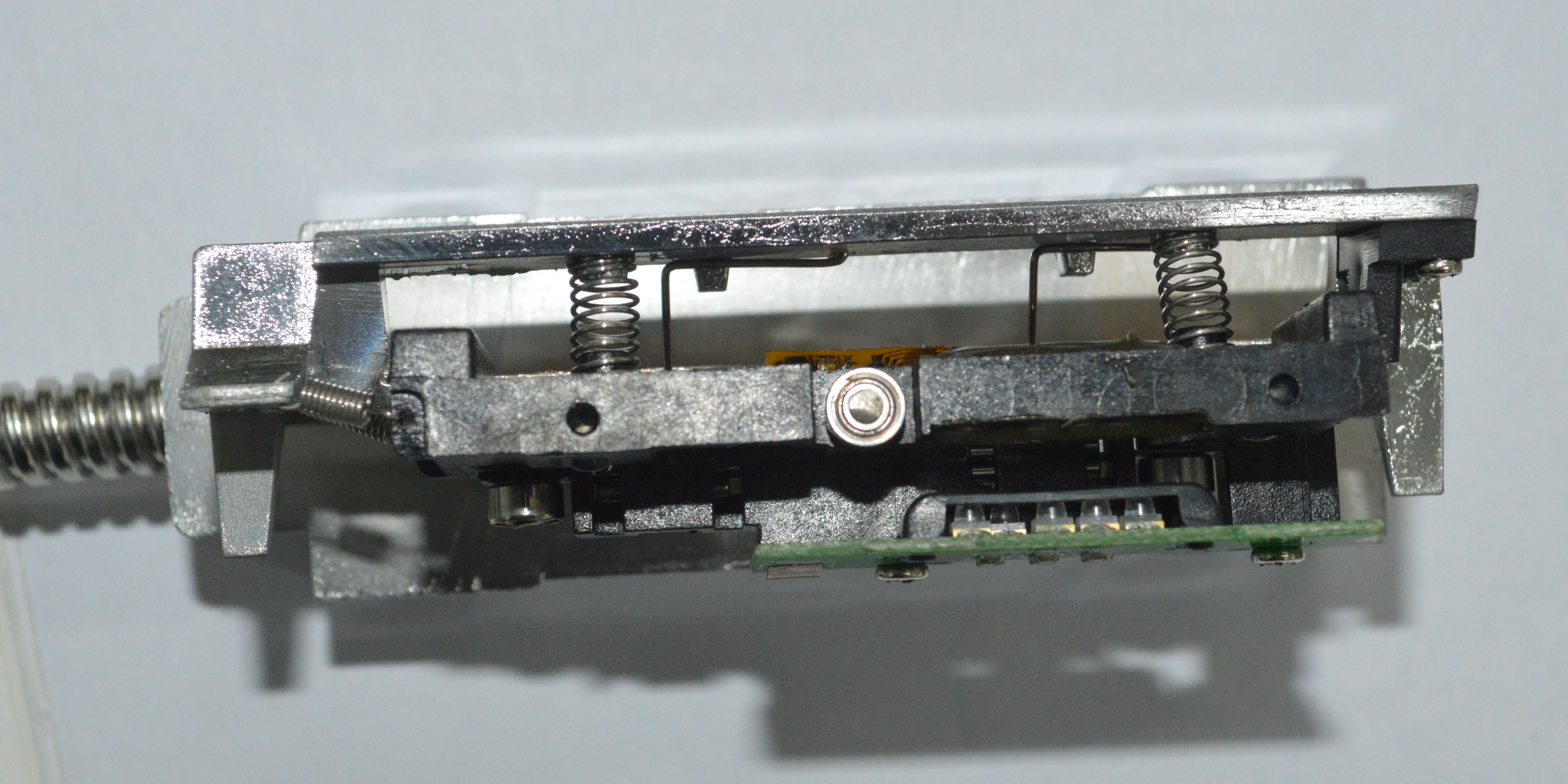

    The slide carrier of the VS / VA series scales, use a five bearing design and six spring for optical grating linear transducer, specially in long dimension scale like the large Lathe machine. The Accuracy is better than the GS20 series long scale.


    Aging Test


    Easson Optical Linear Scale's reader head need to test for 72 hours aging test before assembly process.


    100% Laser calibration

    All linear scale encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.


    Accuracy report in QR code


    Each linear scale encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
