    Easson 50 - 1000 mm Lcd Dro Digital Readout Glass Scale Linear Encoder

    Easson Linear Glass Scale Encoder 50 - 1000 mm Digital Readout Systems For Machine Tools


    GS10GS11GS12GS13GS20GS21GS22GS23GS30GS31GS32GS33
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system45° five bearings supporting systemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel50-1200mmEvery 50mm per length Spec.Not availableEvery 50mm per length Spec.
    1300-3000mmNot availableEvery 100mm per length Spec.Every 50mm per length Spec. up to 500mm
    Accuracy100-450mm±8μm±5μm±8μm±5μm--±8μm±5μm±8μm±5μm
    500-800mm±10μm±8μm±10μm±8μm----
    1050-2000mm±15μm±12μm±15μm±12μm----
    1300-3000mm--±25μm--
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422TTLTTL422422

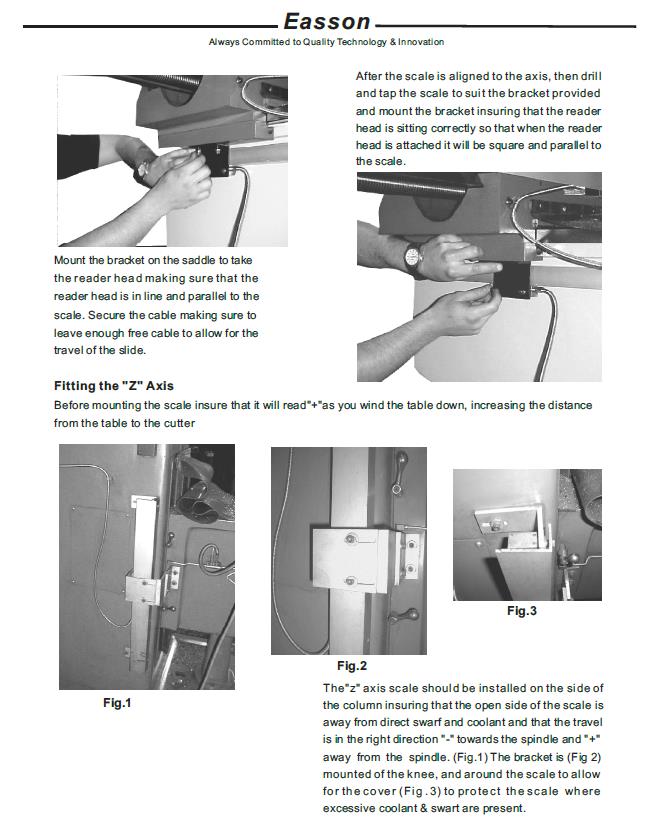

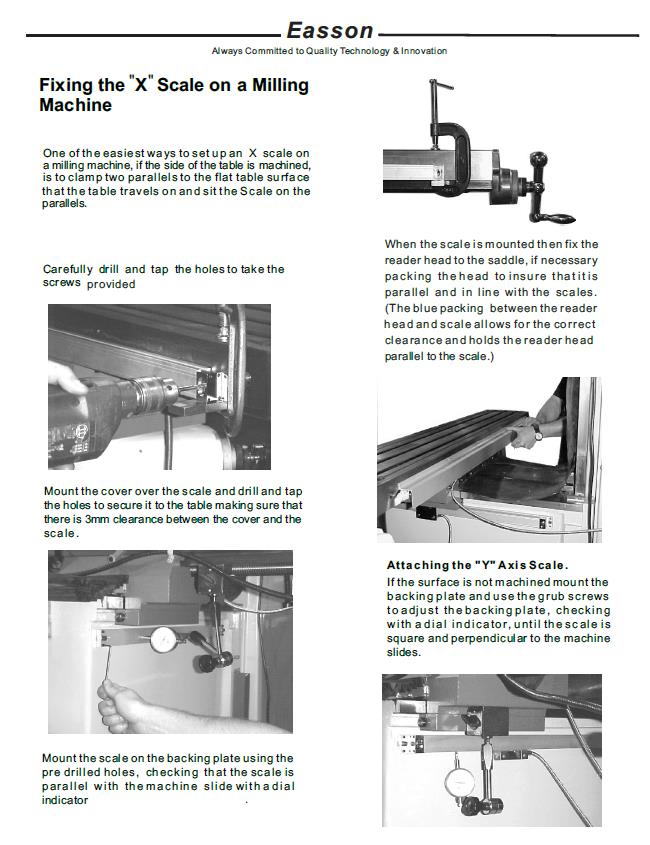

    Installation Guide




    GS10 / GS11 / GS12 / GS13 Series


    GS30 / GS31 / GS32 / GS33 Series




    Connector interface



    The industrial standard TTL(A Qual B), RS-422-A digital signal output are available for user's choice. User can choose the most suitable signal interface according to their cost, power consideration & EMI requirements. Standard 9 pin DSUB9 and 7 pin DIN7 connectors are available.


    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    DIN 7PIN

    PINCableTTL
    1Orange0V
    2————
    3YellowA
    4GreenB
    5Red5V
    6BrownR
    7GroundGND
    CaseGroundGND


    100% Laser calibration


    All Easson linear encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.


    Accuracy report

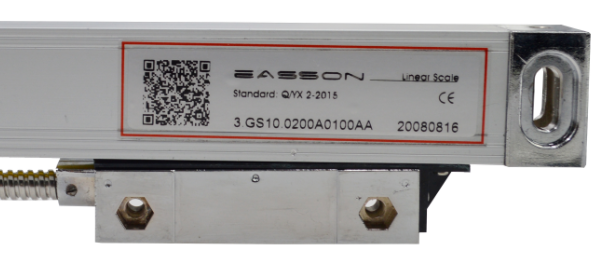

    Each linear scale is printed with a QR code which is convenient for users to check the accuracy report of the factory inspection.
