    DRO Digital Readout 2 Axis Lathe 3000mm length Linear Glass Scales

    Easson Axis DRO Digital Readout for Lathe machine 3000mm length


    Product Introduction

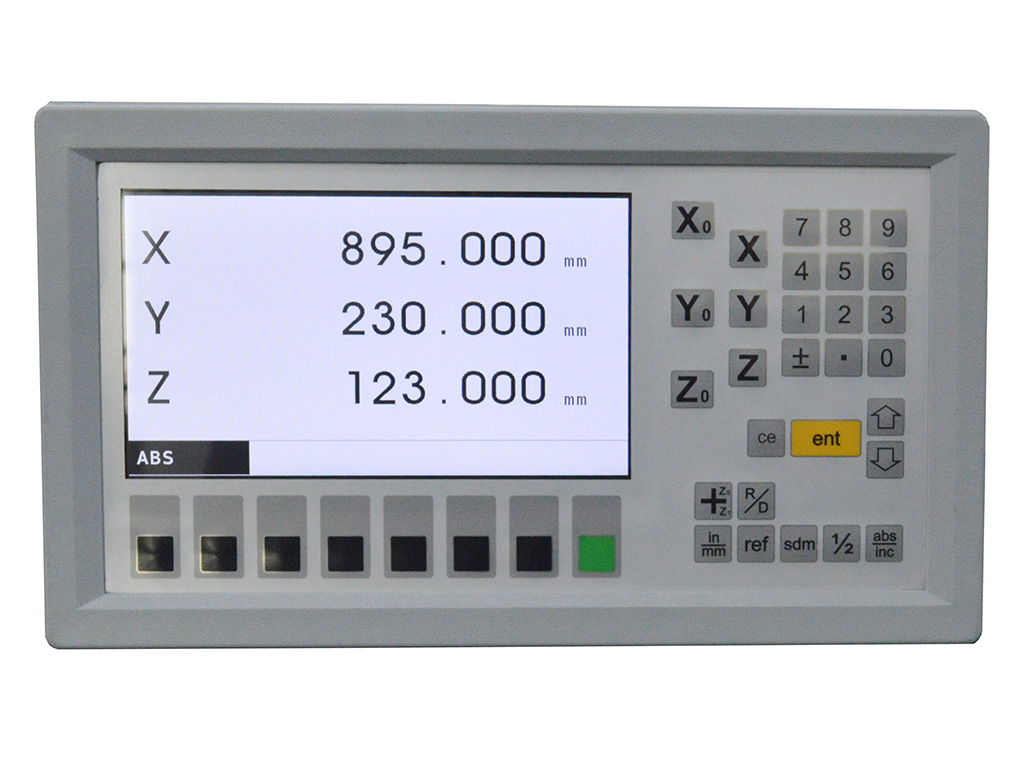

    EA-926 LCD is the latest all in one function digital readout by Easson launch in 2020. It is a practical, multifunctional optical linear scale digital display have been applied to varieties of machine tools like Milling, Lathe, Grinding, Boring machine etc.

    By coordinating with linear scales, EA series readouts can accurately display the value of shifting and achieve NC/CNC. You can not afford to miss this if you are looking for a reliable, efficient and cost-effective Digital Readout Device.


    Advanced Optical Measuring System


    Easson VS Series 1um Milling & Lathe Machine Optical Linear Scale With Digital Readout


    VS Linear scale reader head advantages:

    • Advanced six-spring push-pull structure, repeatability less than 1 micron;
    • Advanced engineering mechanics analysis and design, dynamic speed is more than 120m/min
    • Reader head housing using fully sealed and waterproof design to ensure motherboard circuit for long life service.

    Optical Linear Scale Specification


    VS10VS11VS12VS13VS20VS21VS22VS23
    Measuring StandardGrating Glass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system
    Display Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel50-1200mmEvery 50mmNot available
    1300-3000mmNot availableEvery 100mm
    Accuracy50-450mm±3μm - ±5μm--
    500-800mm±10μm±5μm±10μm±5μm--
    1050-2000mm±10μm±5μm±10μm±5μm--
    1300-3000mm--±10μm/m
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422

    Installation Dimensions



    VS10 / VS11 / VS12 / VS13 Series


    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    100% Laser calibration


    Each linear scale has undergone rigorous inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.


    Easson Measurement Technology Ltd. was established since 1995, is a high-tech enterprise for over 20 years in design and manufacturing precision measuring equipment, such as Video Measuring Systems, profile projector, DRO(counter), linear glass ruler, CNC linear encoder;


    Easson also is one of the few companies in this industry that equipped with master mask manufacturing facilities, all master mask of our absolute linear grating are built in house and with our registered trademark to prevent being illegal copied.
