    Optical glass Digital Readout linear scale For Machine Tools

    Optical glass Digital Readout linear scale For Machine Tools


    Product Introduction

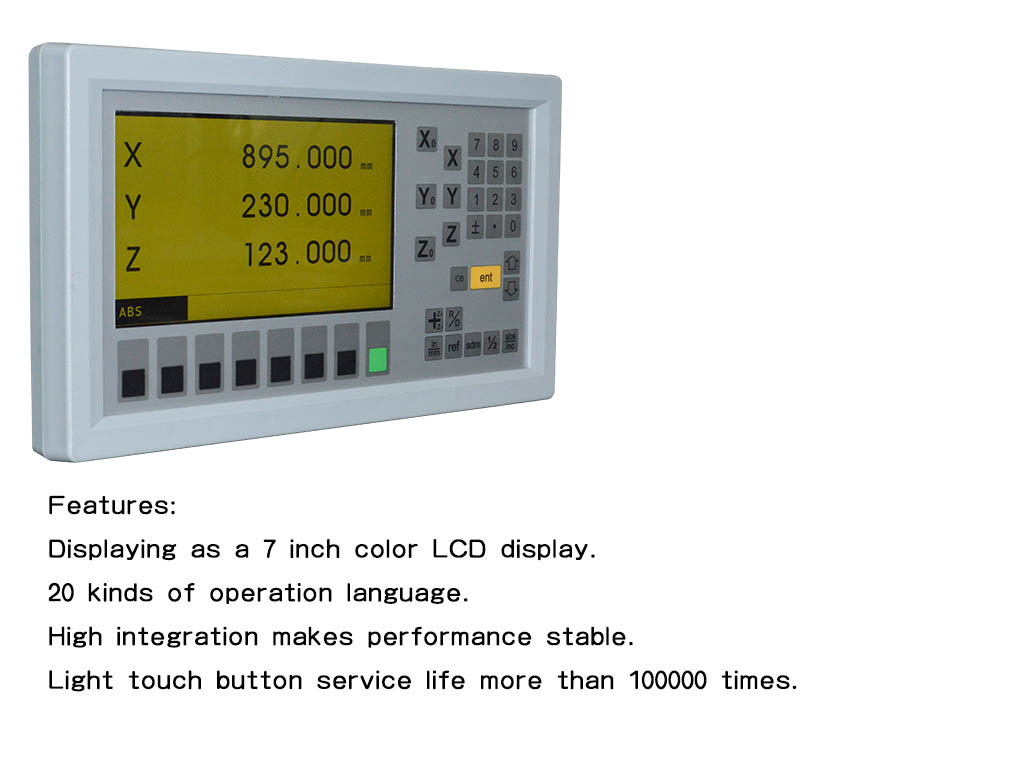

    EA-926 LCD is the new multi-function digital readout system from Easson which have been applied to varieties of machine tools like Milling, Lathe, Grinding, Boring machine etc.

    By coordinating with linear encoder scales, EA series readouts can accurately display the value of shifting and achieve NC/CNC. You can not afford to miss it if you are looking for a reliable, efficient and cost-effective Digital Readout Device.


    Products Parameter


    Centering (1/2)
    Metric / inches Display (mm / Inch)
    Absolute / incremental (ABS / INC)
    Power off Memory (30 subdatum)
    199 subdatum
    Reference Memory (REF)
    Zero
    Pitch Circle Diameter (PCD)
    Line Hole Positioning (LHOLE)
    Simple “R” Function
    Smooth “R” Function
    Linear Error Compensation
    Non Linear Error Compensation
    INCL Function
    Axis Speed Display


    Optical Linear Scale | Linear Scale | Optical Glass Scale


    Advanced Optical Measuring System- Reader Head


    Easson VS Series 1um Milling & Lathe Machine Optical Linear Scale With Digital Readout


    The difference between VS scale and the current China mainland market's optical glass scale is the slide carrier of the VS series optical linear scales, use a five bearing design and six spring for optical grating linear transducer, more reliable support bracket system, specially in long dimension scale like the long Lathe machine. The Accuracy is better than the GS20 series long scale.




    Optical Linear Scale Specification


    VS10VS11VS12VS13VS20VS21VS22VS23
    Measuring StandardGrating Glass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system
    Display Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel50-1200mmEvery 50mmNot available
    1300-3000mmNot availableEvery 100mm
    Accuracy50-450mm±3μm - ±5μm--
    500-800mm±10μm±5μm±10μm±5μm--
    1050-2000mm±10μm±5μm±10μm±5μm--
    1300-3000mm--±10μm/m
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422

    Installation Dimensions



    VS10 / VS11 / VS12 / VS13 Series


    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    100% Laser calibration


    All Easson optical linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
