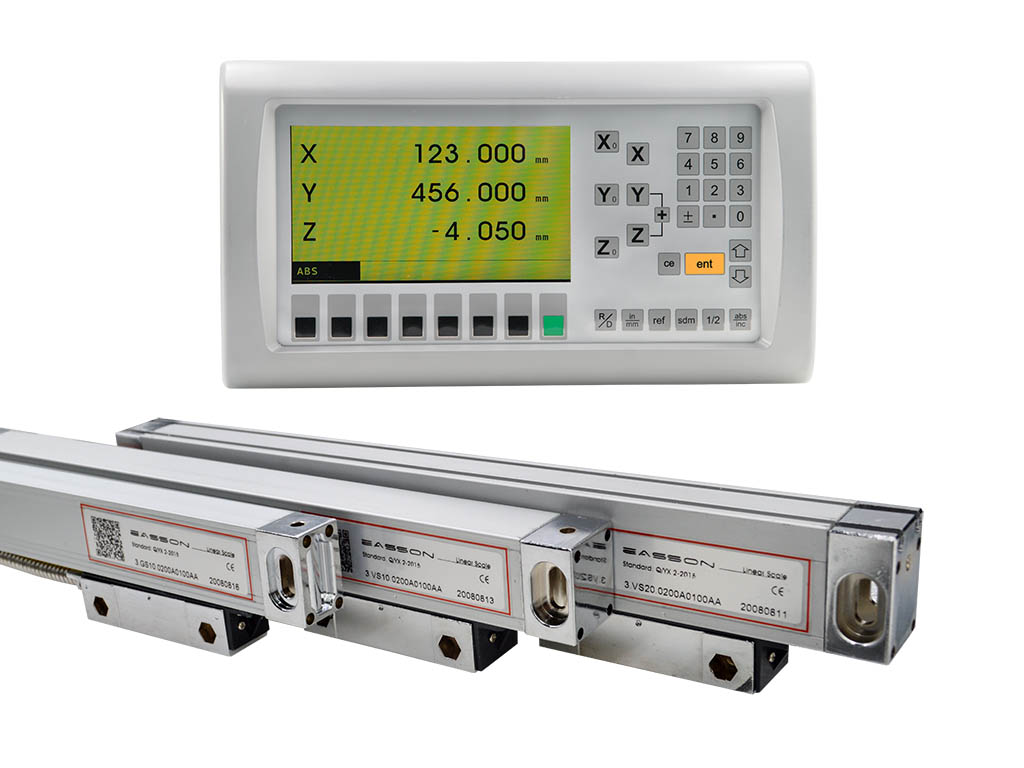

    Lcd Readout Digital Measuring Linear Scale Mill Dro 3 Axis

    Ask Lasest Price
    Brand Name : Easson
    Model Number : EA-927
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    Lcd Readout Digital Measuring Linear Scale Mill Dro 3 Axis


    Packaging & Delivery


    Single package size: 40x26x18 cm

    Package Type: Carton box

    Net weight: 3 kgs

    Delivery:

    Quantity1-1011-5051-100>100
    Est. time ( days )35715

    Features:

    1. Displaying as a 7 inch color LCD display.
    2. Aluminum casing,industrial quality.
    3. 20 kinds of operation language.
    4. High integration makes performance stable.
    5. Light touch button service life more than 100000 times.
    6. Aluminum casing,industrial quality.

    Technical Specification



    Model numberEA-927
    Axis3 Axis
    Axis Display0.1 μm, 0.5 μm, 1 μm, 5 μm
    Signal InputTTL
    Power110 V / 220 V
    Net Weight (KGS)3

    Maximum input

    2 MB Hz
    Operating temperature0℃ - 45℃
    Storage temperature-40℃ - 55℃
    Relative humidity≤ 95%
    Inputs3 Glass Scale
    EMC Standard

    IEC61000-4-2 / GB / T 17799-2

    IEC61000-4-4 / GB / T 17799-4

    IEC61000-4-5 / GB / T 17799-5


    EMC Testing equipment



    To Ensure all Easson Digital Readout products can be pass the standard EMC specification, we have a complete set of EMC test esd immunity tester to test the electromagnetic compatibility.



    Different from others digital display manufacturers using switching power supply layout, Easson Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.


    Lcd Readout Digital Measuring Linear Scale Mill Dro 3 Axis


    Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:


    IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )

    IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )

    IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )




    Aging Testing Room



    Easson Digital Readout System need to do the aging test in high temperature and load test for 72 hours before QC procedure. Aging test can verify the process, design, material and other aspects are defective or not to ensure our products quality is reliable.


    Digital Readout System parameters :


    Centering (1/2)
    Metric / inches Display (mm / Inch)
    Absolute / incremental (ABS / INC)
    Power off Memory (30 subdatum)
    199 subdatum
    Reference Memory (REF)
    Build in Calculator
    Pitch Circle Diameter (PCD)
    Line Hole Positioning (LHOLE)
    Simple R Function
    Smooth R Function
    Linear Error Compensation
    Non Linear Error Compensation
    Axis Speed Display
    Radius / Diameter
    Z axis Summation
