    Easson Scales Milling Lathe LCD 3 Axis Digital Readout System

    Ask Lasest Price
    Brand Name : Easson
    Model Number : ES-14B
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    Easson Scales Milling Lathe LCD 3 Axis Digital Readout System

    High Accuracy 3 Axis Milling & Lathe Machine LCD Digital Readout System Dro


    Product Introduction



    The "All in one and full options" ES-14B digital readout has been designed by Easson to supply to the oversea market in 2018. In the ES-14B it is in fact possible to select the required application(Milling, Lathe, Boring, Drilling, Grinder, Wirecut) directly during the DRO setup.

    DRO display message can be confirured to one of the following languages:

    1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM





    Technical Specification




    ModelES-14B
    Axis number3 Axis
    Axis Display0.1 μm, 0.5 μm, 1 μm, 5 μm
    Signal InputTTL
    Power Supply110 V - 220 V
    Gross Weight (kg)3.5

    Maximum input

    2 MB Hz
    Operating temperature0℃ - 45℃
    Storage temperature-40℃ - 55℃
    Relative humidity≤ 95%
    Inputs3 Optical Glass Scale
    EMC Standard

    IEC61000-4-2 / GB / T 17799-2

    IEC61000-4-4 / GB / T 17799-4

    IEC61000-4-5 / GB / T 17799-5


    EMC Testing equipment



    To Ensure all Easson Digital Readout products can be pass the standard EMC specification, we have a complete set of EMC test esd immunity tester to test it.


    Digital Readout System

    Basic parameter in the ES-14B is included as below:


    Centering (1/2)
    Metric / inches Display (mm / Inch)
    Absolute / incremental (ABS / INC)
    Power off Memory (30 subdatum)
    199 subdatum
    Reference Memory (REF)
    Build in Calculator
    Pitch Circle Diameter (PCD)
    Line Hole Positioning (LHOLE)
    Simple R Function
    Smooth R Function
    Linear Error Compensation
    Non Linear Error Compensation
    Z Axis Summation
    Axis Speed Display
    Bluetooth Function ( Optional )
    Power Failure Position Function ( Only work with Easson Absolute linear Scale)



    Easson Scales Milling Lathe LCD 3 Axis Digital Readout System

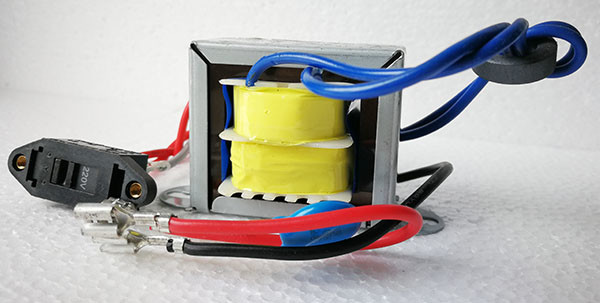

    Easson Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC. To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.



    Aging Test Room



    Digital Readout System need to do the aging test in high temperature test and load test for 72 hours before QC procedure. The aging test exposes defects in the process, design, materials and other aspects of electronic devices before they leave the factory. Therefore, it is of great significance for companies to modify product designs in time, so that products can be sold after they are aging and stable, thereby improving product quality and market reputation.


    Installation point
