    LCD Display Bridgeport Dro 3 Axis Digital Readout Kit

    Ask Lasest Price
    Brand Name : Easson
    Model Number : EA-927
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    LCD Display Bridgeport Dro 3 Axis Digital Readout Kit

    Aluminum Shell LCD Digital Display Dro 3 Axis Digital Readout​


    Product Introduction



    Easson DRO have more user friendly functions that is the display message can be confirured as one of the following languages in setup Manual:

    1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM

    By coordinating with VA series absolute linear scale and thanks to the VA absolute coding, Easson LCD DRO have the power failure point position function (MR), even if the machine worktable move during power off.


    You can not afford to miss this if you are looking for a reliable, efficient and cost-effective Digital Readout Device.


    Features


    • Centering (1/2)
    • Metric / inches Display (mm / Inch)
    • Absolute / incremental (ABS / INC)
    • Power off Memory (30 subdatum)
    • 199 subdatum
    • Reference Memory (REF)
    • Build in Calculator
    • Pitch Circle Diameter (PCD)
    • Line Hole Positioning (LHOLE)
    • Simple “R” Function
    • Linear Error Compensation
    • Non Linear Error Compensation
    • Axis Speed Display
    • Radius / Diameter (Lathe function)
    • Z axis Summation(Lathe function)

    Ultra Low Temperature Linear Power Transformer

    All Easson gigital display's power supply using a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC testing.


    EMC Testing equipment



    All Easson DRO products need to be pass the standard EMC standard specification, hence we have a complete set of EMC test esd immunity tester for the EMC testing.



    Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:

    IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
    IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
    IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )



    Aging Test


    .

    All Easson digital readout unit need to do the aging test, using 3 axis signal generator counting, make sure all couting reading correctly, high temperature test and load test for 3 days before QC procedure.



    Technical Specification



    ModelES-14B
    Axis number3 Axis
    Axis Display0.1μm, 0.5μm, 1μm, 5μm
    Signal InputTTL
    Power SupplyAC110 V - 220 V / 50Hz - 60Hz
    Net Weight (kg)2.5

    Input frequency

    2 MB Hz
    Operation KeyboardLight touch buttons
    Operating temperature0℃ - 45℃
    Storage temperature-40℃ - 55℃
    Relative humidity≤ 95%
    Inputs2 linear encoders
    EMC Standard

    IEC61000-4-2 / GB / T 17799-2
    IEC61000-4-4 / GB / T 17799-4
    IEC61000-4-5 / GB / T 17799-5



    FAQs


    1. Who we are?

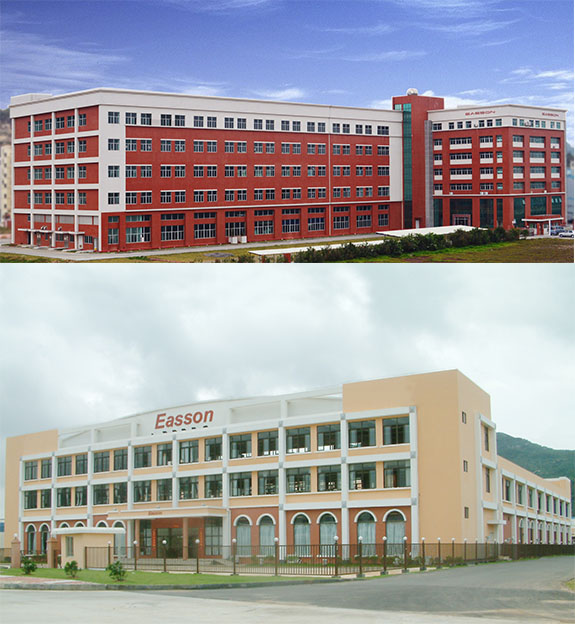

    Easson is a manufacturer in design and manufacturing precision measuring equipment. Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), Linear encoder glass scale.


    2. How can we guarantee quality?

    We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.


    3. Did you accept OEM customized service?
    We can provide not only typical products but also the products customized to customer's request based on the order quantity.


    4. How to send my enquiry?
    You can contact us by email, phone call, message (Whats APP, WeChat, Skype).


    5. How long can I get feedback after enquiry?
    We will reply you within 3 hours in working day.


    6. Delivery time
    Sea freight order normally is 30 days after receive the order comfirmation, small quantity for air freight is available to ship anytime.


    7. Payment term
    100% T/T payment, for others payment terms, welcome to contact us.
