    Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder

    Ask Lasest Price
    Brand Name : Easson
    Model Number : EA-926
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    Mill Mini Lathe 3 Axis Digital Readout With Linear Scales Encoder

    Easson 3 Axis Dro Kit Mill Lathe Machine Digital Readout With Linear Scales Encoder


    Product View


    Easson LCD DRO has much more user friendly, the display message can be confirured to one of the following languages:

    1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM


    By coordinating with linear scales, EA series readouts can accurately display the value of shifting and achieve NC/CNC. You can not afford to miss this if you are looking for a reliable, efficient and cost-effective Digital Readout Device.


    Technical Specification



    Model numberEA-926
    Axis3 Axis
    Axis Display0.1 μm, 0.5 μm, 1 μm, 5 μm
    Signal InputTTL
    Power Supply110 V / 220 V
    Net Weight (KGS)2

    Maximum input

    2 MB Hz
    Operating temperature0℃ - 45℃
    Storage temperature-40℃ - 55℃
    Relative humidity≤ 95%
    Inputs3 Optical Glass Scales
    EMC Standard

    IEC61000-4-2 / GB / T 17799-2

    IEC61000-4-4 / GB / T 17799-4

    IEC61000-4-5 / GB / T 17799-5


    EMC Testing equipment



    All Easson Digital Readout products need to be pass the EMC specification, we have a complete set of EMC test esd immunity tester to test the electromagnetic compatibility.



    Different from others digital display manufacturers using switching power supply layout, Easson Digital readout power supply use a linear power transformer and power filter, it can help our products pass by the noice immunity and the EMC.


    Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:


    IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )

    IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )

    IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )


    Basic parameters are included as below:

    Centering (1/2)
    Metric / inches Display (mm / Inch)
    Absolute / incremental (ABS / INC)
    Power off Memory (30 subdatum)
    199 subdatum
    Reference Memory (REF)
    Build in Calculator
    Pitch Circle Diameter (PCD)
    Line Hole Positioning (LHOLE)
    Simple R Function
    Smooth R Function
    Linear Error Compensation
    Non Linear Error Compensation
    Axis Speed Display
    Radius / Diameter
    Z axis Summation

    DRO advanced Functions: Non-linear error compensation


    ES8C Muilt function Grey 3 Axis Aluminum Shell LCD Digital Readouts Systems

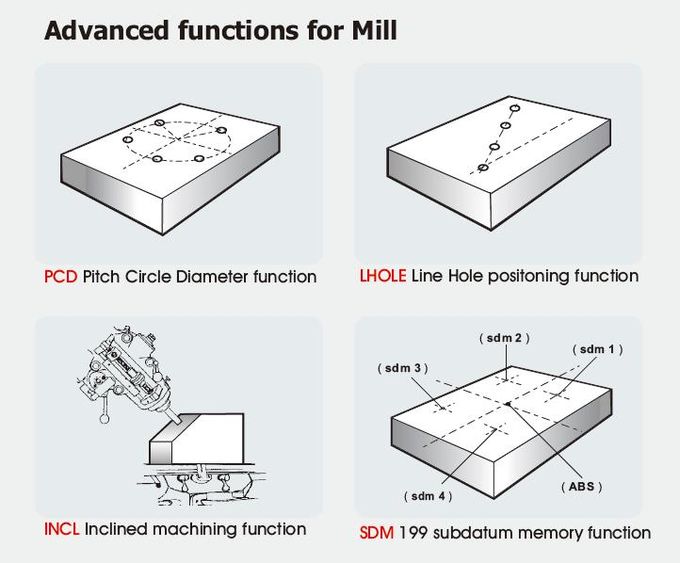

    Advanced functions for Milling machine
    ES8C Muilt function Grey 3 Axis Aluminum Shell LCD Digital Readouts Systems


    Package include:


    1. 3 axis counter 1 set

    2. DRO standard arm and bracket kit 1 set (Mill , Lathe, Grinder applications as one optional)

    3. Power cable 1 PCS
    4. manual book 1 PCS


    Delivery:
    For small quantity, we suggest ship the goods by Fedex or DHL etc.express, delivery time estimate should be 3-10 days.
    For large quantity, we can ship vis seafreight and air shipment, seafreight delivery time should be 30 days, air freight should be 7-10 days


    Warranty:
    All the products we provide 13 months( from the date of shipment )


    Technical support:
    we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.


    Payment:
    Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
