    GS65 Reflective Open Grating Optical Measuring Exposed Linear Encoders

    Ask Lasest Price
    Brand Name : Easson
    Model Number : GS65
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 3000 PCS per Month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    GS65 Reflective Open Grating Optical Measuring Exposed Linear Encoders

    GS65 Reflective Open Grating Optical Measuring Exposed Linear Encoders


    Product Specification


    GS65
    Meas. Standard80μm (0.08mm) pitch grating glass
    Meas. SystemReflective Phased Array Optics System
    Reader CarriageNon-Contact open grating carriage
    Resolution0.02μm ( 20 nanometer )
    Meas. Travel120mmG1: Standard length: 120mm, user cut on demand
    500mmG2: Standard length: 500mm, user cut on demand
    1000mmG2: Standard length: 1000mm, user cut on demand
    1200 - 3000mmG3: Every 200mm per specification
    Accuracy50 - 500mm±3μm / ±5μm
    550 - 1000mm±5μm / ±10μm
    1200 - 3000mm±10μm / m
    HysteresisIncluded in accuracy
    Max. Speed180m / min
    SupplyDC 5V ± 5%
    Output SignalCPE-bus serial data interface
    Output ConnectorDSUB 9


    GS65 High Accuracy Reflective Open Grating Scale


    Features:

    1. High precision backlish free position readings

    2. Exteremely easy to install

    3. High resolution: 0.02μm ( 20 nanometer )

    4. Maximum measuring speed up to 180m/min

    5. Acceleration up to 4G



    There are three choices of measurement accuracy in GS 65 series, there are ±3 μm, ±5 μm, ±10 μm

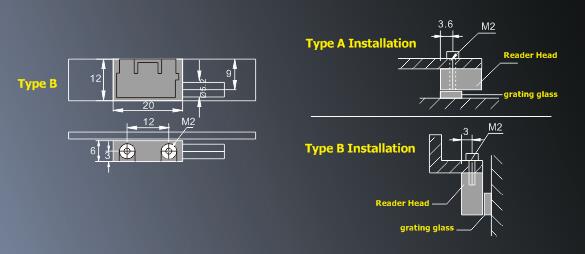

    Installation Dimensions


    To makes your scale installation very easy and convenience, GS65 using small reader head size;

    More than that, there are two types of installation direction fixing of reader head housing available for your choice.


    TYPE A


    TYPE B

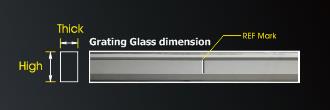

    Grating Glass Dimension




    Glass DimensionHigh(mm)Thick(mm)Meas. Travel(mm)
    G16.21.0120
    G2122.0500 / 1000
    G3123.01200 - 3000

    There are three types of different grating glass dimensions in the GS 65 series,
    they are 6.2mm x 1 mm glass, 12 mm x 2 mm glass, and 12 mm x 3 mm glass.


    Connector interface



    GS65 Reflective Open Grating Optical Measuring Exposed Linear Encoders

    PINTTL
    SignalCable
    1A-Yellow
    20VWhite
    3B-Red
    4GNDSilver
    5R-Black
    6AGreen
    75VBrown
    8BBlue
    9RGrey

    FAQs


    1. Q: How can I order the reflective open grating scale?

    A: You can provide our product code, also advice the specification, we can fit your request.


    2. Q: Did you accept OEM customized service?
    A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.


    3. Q: What is your company mainly produce?
    A: We are mainly produce Vision Measurement Machine, Optical Profile Projector, Digital Readout System(Counter), Linear encoder glass scale. CNC linear scale


    4. Q: What material you can provide for the exposed linear encoder scale grating glass?

    A: Normal glass and Quartz glass


    5. Q: How long can you produce the exposed linear scale?

    A: Maximum 3000mm


    6. Q: Warranty:
    A: All the products we provide 13 months( from the date of shipment )


    7. Q: Technical support:
    we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.


    8. Q: Payment:
    Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
