    Cnc Measuring 6 Springs Lathe Digital Readout Kit Absolute Linear Scale

    Advanced Optical Measuring System 6 Springs Absolute Linear Scale Digital Readout


    Product Specification


    VA10VA11VA12VA13VA20VA21VA22VA23
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel50-1200mmEvery 50mm per length SpecificationNot available
    1300-3000mmNot availableEvery 100mm per length Specification
    Accuracy50-450mm±3μm - ±5μm--
    500-800mm±10μm±5μm±10μm±5μm--
    1050-2000mm±10μm±5μm±10μm±5μm--
    1300-3000mm--±10μm/m
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422

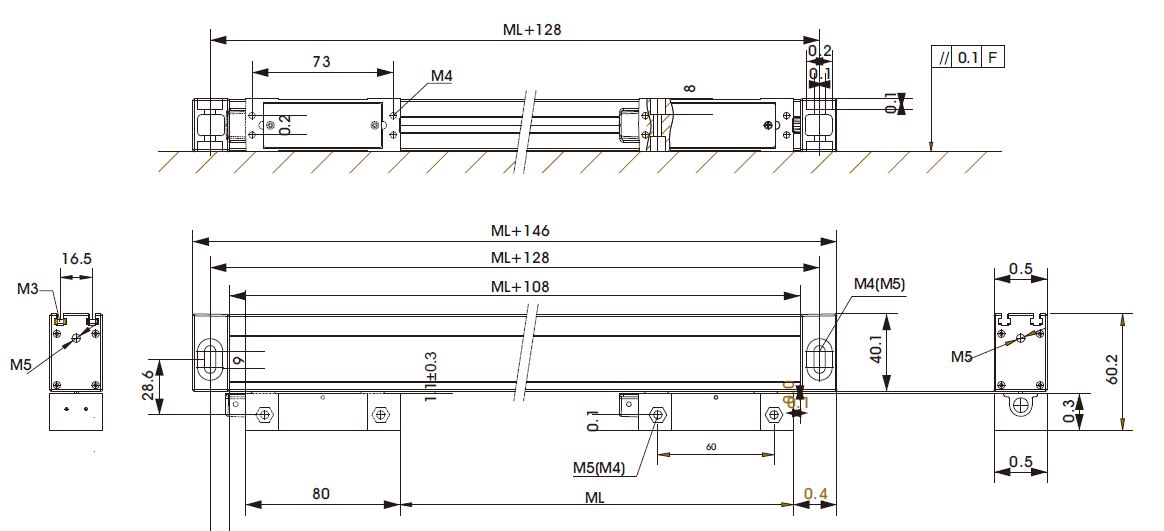

    Installation Dimensions



    VA20 Series


    Connector interface



    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    Product Description


    Advanced Optical Measuring System


    Features:

    • The slide carrier of the scales, use a five bearing design and six spring for optical grating linear transducer
    • Can connect a positive press system to reach waterproof IP65.
    • The scale body using double T-slot design which is convenient to install and correct the scale body.
    • Moving speed can more than 120m/min.
    • Linear encoder has three reference mounting surfaces which can flexibly fit to various types of machine tools.


    Aging Test

    Aging test can verify the process, design, material and other aspects are defective or not. We can using this testing promptly revises the product design to improve product quality and service life.


    100% Laser calibration

    All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.


    Accuracy report in QR code

    Easson each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
