    Dro Unit Measuring Machine Optical Absolute Linear Encoder

    Built in Compensation Data VA Series Absolute Linear Encoder For Measuring Machine


    Product Specification


    VA10VA11VA12VA13VA20VA21VA22VA23
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel50-1200mmEvery 50mm per length SpecificationNot available
    1300-3000mmNot availableEvery 100mm per length Specification
    Accuracy50-450mm±3μm - ±5μm--
    500-800mm±10μm±5μm±10μm±5μm--
    1050-2000mm±10μm±5μm±10μm±5μm--
    1300-3000mm--±10μm/m
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422

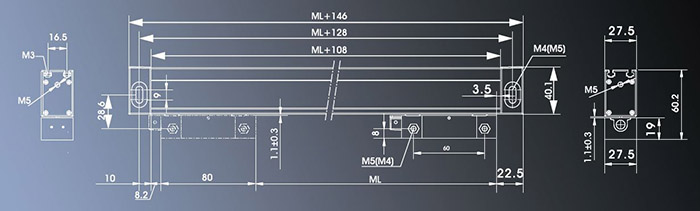

    Installation Dimensions



    VA10 / VA11 / VA12 / VA13 Series


    VA20 / VA21 / VA22 / VA23 Series




    Connector interface

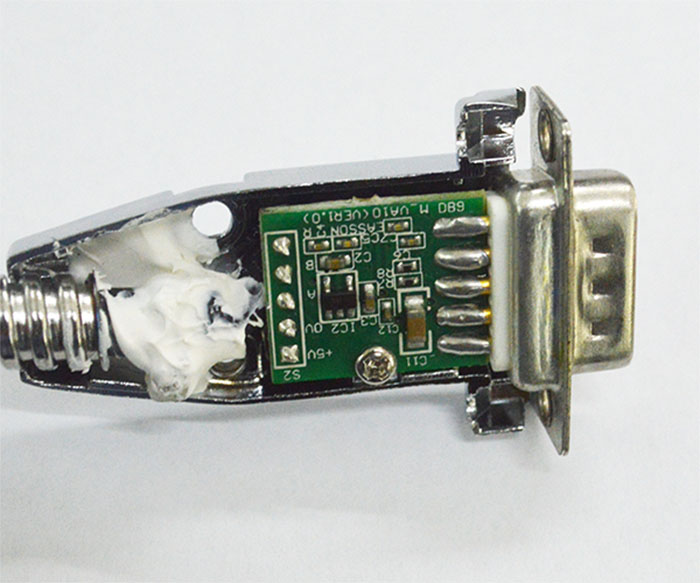

    Gold-plated pins to avoid poor connection and Anti-corrosion, it has the small PCB inside the connector which allow the VA series Absolute Linear Scale built in the Laser compensation data and directly connect to our LCD DRO, ensure the high measuring accuracy.


    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey



    Product Description



    Advanced Optical Measuring System


    The VS / VA series scales slide carrier, five bearing design and six spring for optical grating linear transducer, make sure the VA scales not effected by installation, the spring can adjust the angle when the operator install not good for the alignment.


    VA scale has a small PCB inside the 9 PIN connector, the laser compensation data is store inside, with our LCD Digital display unit, the compensation data will directly load the ECF file (compensation file) into the DRO, accuracy up to ±2μm.



    100% Laser calibration

    All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.


    Accuracy report

    Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
