SP Series CNC Automatic Vision Measuring System With 3 Axis 0.01μm
Linear Encoder
Product Introduction

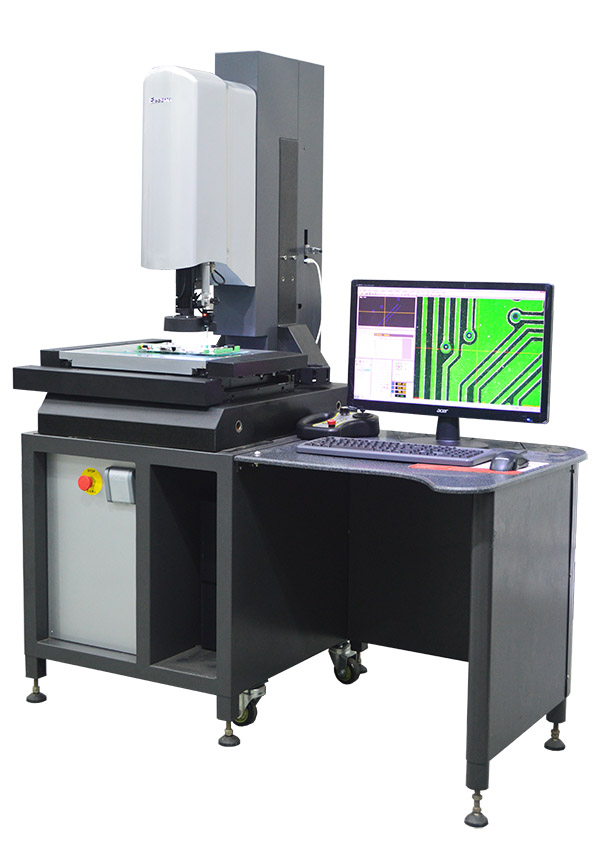

The SPARTAN series CNC Automatic Vision Measurement System is
designed specifically for large scale repeated measuring, it is
with high speed, high effcient and powerful.
The 3 axis of SP series adopt the Easson AC servo motor system,
recognized by the industry as one of the most reliable system, to
make sure high speed and reliable measuring.
It widely used in dimensional accuracy measurement of various
metal, mobile phone, scientific research, electronics, hardware and
plastic, precision metal stamping plate, screen printing plate,
acrylic plate, LCP film, PCB board, LCDTFT, glass cover plate, TP,
frame of ultra-large LCD, die cutting, backlight module group, as
well as for auxiliary measurements such as reverse engineering
graphic R & D, design, drawing editing,laboratory inspection, etc..
Technical Specification
| Model Number | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 | 600 x 500 x 300 |
| Overall Dimension (mm) | 1200 x720 x 1600 | 1250 x 900 x 1600 | 1350 x 1000 x 1850 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 | 648 x 548 x 18 |
| Gross Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | 2+L/150 |
| Repeatability(μm) | 2 |
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X |
| Axis Display Resolution | 0.00001mm (0.01μm) |
| Lighting System | Eight areas up light source with two laser positioning system |
| Operation Model | Automatic, control by mouse, joystick or keyboard |
| Lens | Automatic Zoom, automatic focus optical coaxial lens |
| Vision System | High-resolution SONY CMOS global shutter camera |
Characteristics
1. The X / Y / Z three axes of the Absolute Linear Scale is
independent researched and developed, with a resolution of up to
0.01 μm
2. F3 high precision closed loop auto zoom lens.
3. The special designed motion controller of Vision measuring
machine using Ethernet transmission, which is efficient and
reliable system, can solve the disadvantage of unstable USB
transmission.
4. High-resolution SONY CMOS sensor of image processor to ensure
the image is clear and without smearing.
5. The up light source using eight areas partitioned independent
control lighting system, and the light-emitting element using
low-attenuation LED to extend working life.
6. Independently developed multi-function 2D and 3D measurement
software, the measurement results can be output to DXF, Word,
Excel, PDF and other formats.
Products
Working Principle
When putting a workpiece on the work table, its image is captured
and exported to the computer through transmission or reflecting
lighting of the device, then by using software functions like
video, measuring together with work table translating, coordinate
collecting, user can take measurements like ponit, line, surface to
the workpiece.
F3 high precision closed loop auto zoom lens
Combine with the high-precision, high-resolution ring scale
developed and designed by Easson's F3 lens, full closed-loop
position feedback, the image multiple repetition error caused by
the gear transmission gap is eliminated to Improve the
repeatability of the overall measurement.
The three Axis of SPARTAN series adopt the AC servo motor system,
recognized by the industry as one of the most reliable system, to
make sure high speed and reliable measuring.
21 Orders Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network
control System which is included 21 orders volumetric compensation,
with Ultra-high-speed linear encoder reading and built-in EAD
(absolute scale decoder) allow AR series system to use our AS-80
high precision absolute scale, providing high accuracy and high
resolution measurement.
Case Analysis
Thanks to the High accuracy auto zoom lend and Camera, also
powerful 2D measurement software, it can recognize the image
outline easily and correctly.
2D / 3D Multiple Measurement
Easson three series of vision measuring machines can cooperate with
the UK Renishaw high-precision touch probe for 2D / 3D multiple
measurement. The 3D measurement of the probe can be mixed with the
2D measurement of the imaging system. The same coordinate system is
used for 2D / 3D measurement in perfect and easy combination.
