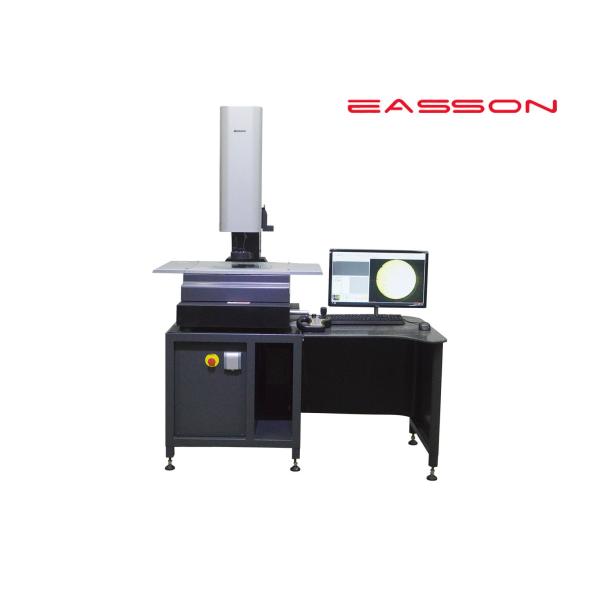

    CNC Metrology Linear Visual Inspection Systems In Plastic Measurement

    High Accuracy Granite Structure CNC Video Measuring Machine In Plastic Measurement


    Product Introduction



    AT -3020 CNC Automatic Vision Measurement machine is specifically designed for Batch testing 7 x 24 hours, it is with high speed, high effcient and powerful.


    The 3 axis of AT series adopt the Easson AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.


    The features of AR- 3 system are as follows:

    1. Special purpose-built processor (ASP) to significantly reduce the number of electronic circuits and parts to improve reliability.
    2. Single circuit board structure in order to greatly reduce the number of wiring to improve reliability.
    3. High speed, energy saving and high precision fully closed-loop AC servo control system, which can provide positioning accuracy up to 1 μm, in order to minimize the possible factors affecting measurement repeatability.
    4. 21 orders of high precision geometric stereo spatial error compensation.
    5. X , Y , Z axis of the Absolute Linear Scale is independent researched and developed, with a resolution up to 0.01 μm.
    6. The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
    7. 3 axis precision linear guide, precision drive system and CNC control system.

    Technical Specification



    Model TypeAT-3020AT-4030
    Measuring Travel(mm)300 x 200 x 200400 x 300 x 250
    Dimension (mm)1200 x 720 x 16001250 x 900 x 1600
    Work Table Glass Size(mm)339 x 239 x 10439 x 339 x 12
    Weight (kg)280460
    Max Table Load(kg)3030
    Measurement Accuracy (μm)1.5+L/200
    Repeatability2 μm
    MagnificationOptical Magnification 0.7-4.5X, Image Magnification 20-125X
    Axis Display Resolution0.00001mm (0.01μm)
    Lighting SystemEight areas up light source with two laser positioning system
    OperationAutomatic control by mouse, joystick or keyboard
    LensAutomatic Zoom, automatic focus optical coaxial lens
    Vision SystemHigh resolution SONY CMOS global shutter camera

    F3 high precision closed loop auto zoom lens




    Combine with the high precision, high resolution ring scale developed and designed by Easson's F3 lens, full closed-loop position feedback, the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.


    F3 Lens of Z axis use a servo motor control independent up and down, without the sheet metal cover any movement.


    21 Orders Volumetric Compensation



    CNC Metrology Linear Visual Inspection Systems In Plastic Measurement

    Easson Vision Measuring Machine using AR3 Network control System which included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in absolute code decoder of AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.


    2D / 3D Multiple Measurement



    UK Renishaw high-precision touch probe for 2D / 3D composite measurement: Height measurement, ball measurement, inclined surface measurement, thickness measurement, flatness measurement, squareness measurement and other three-coordinate measurement functions etc.
