    50 - 3000mm Easson 2 Axis Lcd Dro Readout For Machine Tools

    Ask Lasest Price
    Brand Name : Easson
    Model Number : EA-926
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    50 - 3000mm Easson 2 Axis Lcd Dro Readout For Machine Tools

    50 - 3000mm TTL Signal Easson 2 Axis Lcd Dro Readout For Machine Tools

    Product Introduction



    The EA series is one of the new digital readout systems with all in one function develop by Easson. It is a practical, multifunctional optical glass scale digital display for manual machine tools like Milling, Lathe, Boring machine etc.

    The design is to ensure the fully function and high quality, try to use the most reasonable solution reduce the price to improve product competitiveness.

    The Autotex is used as the key membrance of EA series, it offer excellent chemical resistance to most commonly used industry solvent and excellent switch life, switch life of expected to be 100,000 times.


    Ultra Low Temperature Rise Transformer

    50 - 3000mm Easson 2 Axis Lcd Dro Readout For Machine Tools


    Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.

    To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.


    EMC Testing equipment



    To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.


    Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:

    IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
    IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
    IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )



    Aging Test


    Easson Multi-Functional High Quality 2 Axis Grey Shell Digital Readout Dro System

    .

    Easson DRO need to do the aging test, using 3 axis signal generator counting, make sure all couting reading correctly, high temperature test and load test for 3 days before QC procedure.


    Easson Multi-Functional High Quality 2 Axis Grey Shell Digital Readout Dro System

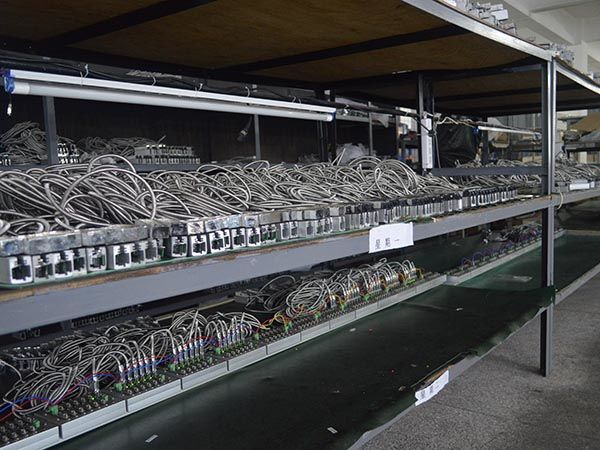

    Easson Optical Linear Scale's reader head need to power on for 72 hours aging test before assemble,

    make sure all linear scale's quality is reliable.



    Technical Specification



    Model NumberEA-926
    Axis numberTwo Axis
    Axis Display0.1μm, 0.5μm, 1μm, 5μm
    Signal InputTTL
    Voltage RangeAC110 V - 220 V / 50Hz - 60Hz
    Net Weight (kg)2

    Input frequency

    2 MB Hz
    Operation KeyboardLight touch buttons
    Operating temperature0℃ - 45℃
    Storage temperature-40℃ - 55℃
    Relative humidity≤ 95%
    Inputs2 linear encoders
    EMC Standard

    IEC61000-4-2 / GB / T 17799-2
    IEC61000-4-4 / GB / T 17799-4
    IEC61000-4-5 / GB / T 17799-5



    Basic parameter is included as below:

    Centering (1/2)
    Metric / inches Display (mm / Inch)
    Absolute / incremental (ABS / INC)
    Power off Memory (30 subdatum)
    199 subdatum
    Reference Memory (REF)
    Zero
    Pitch Circle Diameter (PCD)
    Line Hole Positioning (LHOLE)
    Simple “R” Function
    Smooth “R” Function
    Linear Error Compensation
    Non Linear Error Compensation
    INCL Function
    Axis Speed Display



    ES series DRO advanced Functions: Non-linear error compensation



    Advanced functions for Milling machine




    Connector interface



    PIN123456789
    TTL Signal---0V---GND---A5VBR
    Cable---Orange---Ground---YellowRedGreenBrown
