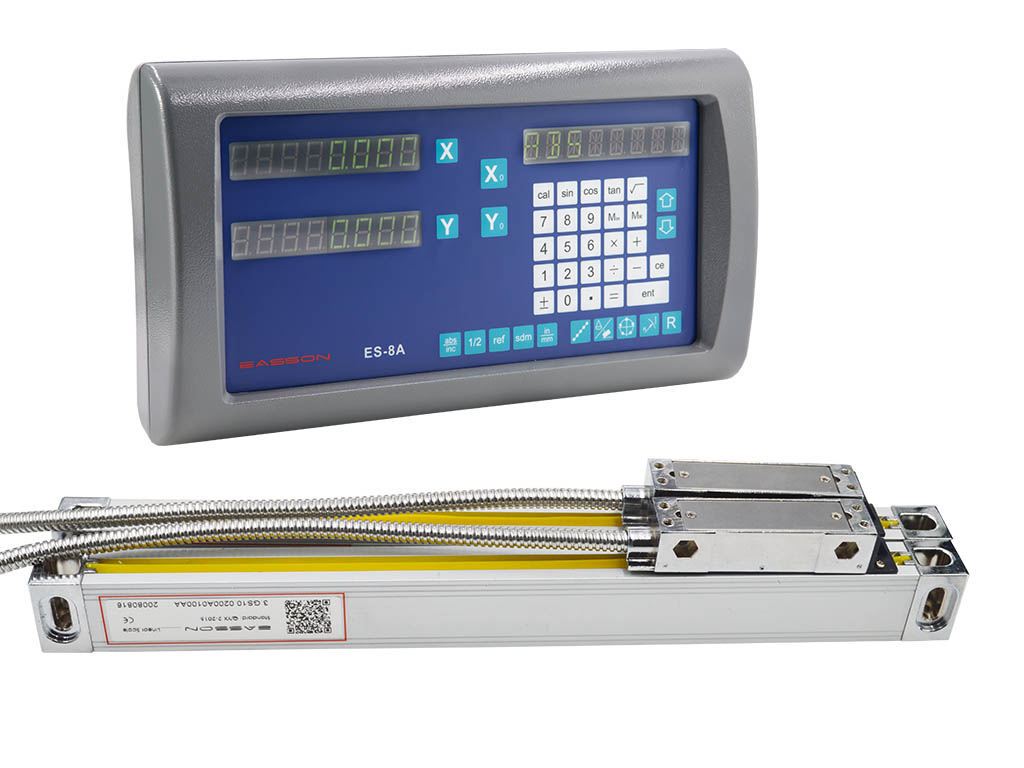

    ES8A 2 Axis Milling Easson Digital Readout Linear Measurement Tool

    Ask Lasest Price
    Brand Name : Easson
    Model Number : ES-8A
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    ES8A 2 Axis Milling Easson Digital Readout Linear Measurement Tool

    ES8A 2 Axis Milling Easson Digital Readout Linear Measurement Tool


    Product Introduction


    ES series DRO feature:

    • High noise immunity & ( EMC ) design
    • Adaptable to poor electrical source
    • High Durability Switch Membrane
    • Robust Aluminum Casing
    • Ultra Low Temperature Rise Transformer
    • State of the Art Electronics Technology
    • Totally Sealed Enclosure

    Ultra Low Temperature Rise Transformer


    Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.

    To reduce the total heat generation inside the DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.


    EMC Testing equipment



    To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester equipment for testing the EMC.




    Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:

    IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
    IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
    IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )


    Aging Test Room


    Easson Quality Multi-function 2 axis Digital Readout Systems Dro For Machine Tools

    .

    All Easson Digital Readout System need to do the aging test, using 3 axis signal generator counting, make sure all couting reading correctly, high temperature test and load test for 72 hours before QC procedure.



    Technical Specification



    Model NameES-8A
    Axis number2 Axis
    Axis Display0.1μm, 0.5μm, 1μm, 5μm
    Signal InputTTL
    Voltage RangeAC 110 V - 220 V
    Net Weight3 kgs

    Input frequency

    2 MB Hz
    Operation KeyboardLight touch buttons
    Operating temperature0℃ - 45℃
    Storage temperature-40℃ - 55℃
    Relative humidity≤ 95%
    Inputs2 Optical glass scales
    EMC Standard

    IEC61000-4-2 / GB / T 17799-2
    IEC61000-4-4 / GB / T 17799-4
    IEC61000-4-5 / GB / T 17799-5



    Basic parameter is included as below:

    Centering (1/2)
    Metric / inches Display (mm / Inch)
    Absolute / incremental (ABS / INC)
    Power off Memory (30 subdatum)
    199 subdatum
    Reference Memory (REF)
    Zero
    Pitch Circle Diameter (PCD)
    Line Hole Positioning (LHOLE)
    Simple “R” Function
    Smooth “R” Function
    Linear Error Compensation
    Non Linear Error Compensation
    INCL Function
    Axis Speed Display



    Connector interface



    PIN123456789
    TTL Signal---0V---GND---A5VBR
    Cable---Orange---Ground---YellowRedGreenBrown

    FAQ


    1. Q: Did you accept OEM customized service?

    A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.


    2. Q: What is your company mainly produce?

    A: We are mainly produce Vision Measurement Machine, Optical Profile Projector, Digital Readout System(Counter), Linear encoder glass scale.

    3. Q: Delivery time
    A: Sea freight order normally is 30 days after receive the order comfirmation, small quantity for air freight is available to ship anytime.


    4. Q: Payment term
    A: Normal accept 100% T/T payment, for others payment terms, please contact us.
