Easson Factory High Accuracy Optical Measurement Inspection System Profile Projector

Product Description

EP series Optical Profile Projector operating principle

A work piece Y is placed on the table surface, there is an parallel ray illumination system S1 in below the work piece, the light from lamp S1 is made to be a parallel ray by the optical system K1 & C1, then the image of the work piece Y is precisely projected to a precision magnification lens O, the image then reflects through two flat mirror M1 and M2, finally projected to the screen P and become a magnified image Y'.

Since the magnified image Y' is highly precise in dimensions, operator can measure the magnified image Y' by a glass grating scale to know the dimensions of the workpiece Y.

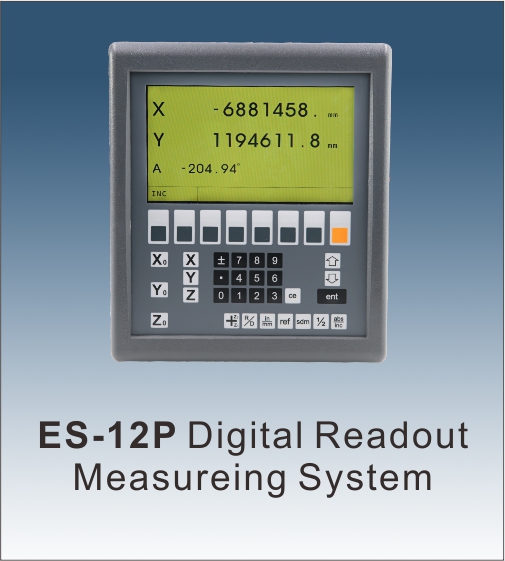

EP series profile project equipped with a high precision digital readout system in the XY table which enable operator direct readout the dimension of the work piece with the assistance of magnified image.

Profile projector parts sketch map

Robust friction transmission system

To avoid the usual backlash problem of normal lead screw transmission system, rod base friction transmission system are used in the XY movements. This solution provides excellently smooth, sensitive and backlash free positioning that assure easy and precise measurements.

High precision linear guideway

high precision linear guideways are used in all X, Y and Z axis movements. This design provides very high straghtness movements and consequently, high measurement accuracy.

High stability machine casting

To avoid deformation caused by the internal stress of the metal casting, in addition to the usual internal stress release process ( by tempering ), all EP-1 casting are further stress released by a computer controlled vibration stress release. This process assure high dimensional stability and long lasting measuring accuracy.

EP-1 Profile projector Accessories

Technical Specifications

Easson Measurement Technology Ltd. was established since 1995, is a high-tech enterprise for over 20 years in design and manufacturing precision measuring equipment, such as Video Measuring Systems, profile projector, DRO(counter), linear glass ruler, CNC linear encoder;

Easson have actively participated in standard committee's work, seriously work together with other pioneering companies in this industry to boost the development of this industry in China.

Easson is one of the few companies in this industry that equipped with master mask manufacturing facilities, all master mask of our absolute linear grating are built in house and with our registered trademark to prevent being illegal copied.

Easson was established since 1995.It is a high-tech enterprise specializing in design and manufacturing of precision measuring equipment, obtained more than 20 national invention and utility model patents. Our product field in DRO systems, precision optical profile projectors, video measuring machine and etc..

Easson's factory building is specifically design and built for the manufacturing of precision measuring equipment, has four Laser interferometers for being the company's length measurement standard and R&D.

Easson is one of the few companies in the industry that has its own high-precision grating master which use own fully-developed grating master lithography equipment, produce the absolute linear encoder and high accuracy CNC linear encoder.

Our quality management system has been assessed and registered by National Quality Assurance Ltd.(NQA) against the provision of ISO 9001:2015.

Strong Technical Capabilities And Scientific Research Resources

Over the years, the company has established a very close and effective cooperative relationship with scientific research institutions such as Xi'an Jiaotong University and Jilin University, taking advantage of the abundant talents and theoretical advantages of university scientific research institutions, combined with the company's long-term accumulated technology and practical experience in this industry , so that we have created many products that are leading the domestic industry.

In addition, the company actively participates in the scientific research and industrialization projects issued by the state and Zhuhai City.

For example, in 2011, the company participated in the "High-end CNC Machine Tools and Basic Equipment" led by Xi'an Jiaotong University and issued by the Ministry of Industry and Information Technology of China "Science and Technology Major Project. And combined with Tianjin University, Hefei University of Technology, Chinese Academy of Metrology... and other units jointly developed.

The company's AS-40 series grating ruler is one of the results of this project, which is industrialized by our company. And our company's EC-2 Pseudo-random absolute coding is one of the project achievements jointly developed by our company and Jilin University.

Actively participate in industry standard setting

Easson Measurement Technology Ltd. is one of the core members of the Digital Display Sub-Standard Committee of the National Measuring Tool and Measuring Instrument Standardization Technical Committee of China.

For a long time, it has actively participated in the formulation of various standards in the industry, and introduced the most advanced international standards in the industry. standards, and work together with peers to promote the development of the industry.

The company participated in the drafting of many national and industry standards, such as industry standard JB/T 10080.1-2011 "Graster Digital Display Instrument", JB/T10080.2-2011 "Graster Linear Displacement Sensor", etc. JB/T 11505-2012 "Displacement Sensor" Encoder CPE-Bus bidirectional serial communication protocol specification".....
