High Resolution 3 axis Linear Scale Digital Position Readout

Product Introduction

In ES-8A EDM operation, the X and Y axis of the EDM machine is not move during the whole machining process, whereas the Z axis is keep moving up and down, the most important mission of the EDM machining is control the depth of the machining precisely.

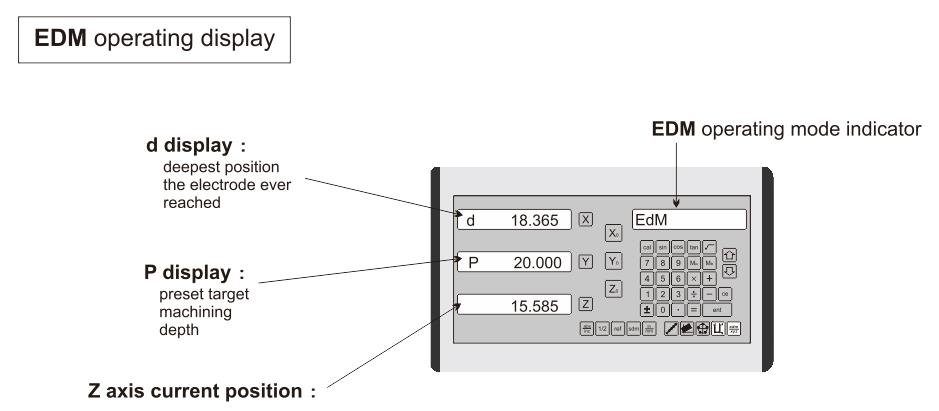

Since the Z axis is keep moving up and down during the whole machining process, it is very difficult for the operator to decide the depth of electrode, ES-8A EDM provides specialized EDM operating display to show the deepest position that the electrode have ever reached and the target machining depth. It greatly help the operator to understand and control the EDM machining process.

ES-8A EDM provides relay output to stop the EDM machine automatically once the electrode reached the target machining depth.

Relay output circuit for ES-8A EDM

Because most EDM machine are equipped with big capacitors in their power circuit, therefore, they normally not affected by short power black out which may be caused by storming weather or the voltage drop triggered by the start up of a big machine in the same power line or etc. However, DRO are not equipped with big capacitor and hence much more sensitive to power failure and will reset after power failure. In the case if the EDM machine won't reset but the DRO reset during EDM machining operation, the DRO will lost the Z axis electrode position during the reset , it will cause a mistaken machining.

To avoid such problem, ES-8A EDM using the opposite output design. In case the ES-8A EDM lost power or being reset, it's output always in "Activate" state to stop and lock the EDM machine to avoid any possible mistaken machining.

Connecting Pin Configuration

Normally "Open", Activated "Close" : Pin 6 & 7;

Normally "Close", Activated "Open" : Pin 6 & 8

EMC Testing equipment

To Make sure all Easson DRO products can be pass the EMC standard specification, we have a complete set of EMC test ESD immunity tester.

Technical Specification

Basic parameter is included as below:

Easson was established since 1995.It is a high-tech enterprise specializing in design and manufacturing of precision measuring equipment, obtained more than 20 national invention and utility model patents. Our product field in DRO systems, precision optical profile projectors, video measuring machine and etc..

Easson's factory building is specifically design and built for the manufacturing of precision measuring equipment, has four Laser interferometers for being the company's length measurement standard and R&D.

Easson is one of the few companies in the industry that has its own high-precision grating master which use own fully-developed grating master lithography equipment, produce the absolute linear encoder and high accuracy CNC linear encoder.

Our quality management system has been assessed and registered by National Quality Assurance Ltd.(NQA) against the provision of ISO 9001:2015.

Strong Technical Capabilities And Scientific Research Resources

Over the years, the company has established a very close and effective cooperative relationship with scientific research institutions such as Xi'an Jiaotong University and Jilin University, taking advantage of the abundant talents and theoretical advantages of university scientific research institutions, combined with the company's long-term accumulated technology and practical experience in this industry , so that we have created many products that are leading the domestic industry.

In addition, the company actively participates in the scientific research and industrialization projects issued by the state and Zhuhai City.

For example, in 2011, the company participated in the "High-end CNC Machine Tools and Basic Equipment" led by Xi'an Jiaotong University and issued by the Ministry of Industry and Information Technology of China "Science and Technology Major Project. And combined with Tianjin University, Hefei University of Technology, Chinese Academy of Metrology... and other units jointly developed.

The company's AS-40 series grating ruler is one of the results of this project, which is industrialized by our company. And our company's EC-2 Pseudo-random absolute coding is one of the project achievements jointly developed by our company and Jilin University.

Actively participate in industry standard setting

Easson Measurement Technology Ltd. is one of the core members of the Digital Display Sub-Standard Committee of the National Measuring Tool and Measuring Instrument Standardization Technical Committee of China.

For a long time, it has actively participated in the formulation of various standards in the industry, and introduced the most advanced international standards in the industry. standards, and work together with peers to promote the development of the industry.

The company participated in the drafting of many national and industry standards, such as industry standard JB/T 10080.1-2011 "Graster Digital Display Instrument", JB/T10080.2-2011 "Graster Linear Displacement Sensor", etc. JB/T 11505-2012 "Displacement Sensor" Encoder CPE-Bus bidirectional serial communication protocol specification".....
