    5um 1um Optical Linear Encoders With LCD Digital Readout System

    Ask Lasest Price
    Brand Name : Easson
    Model Number : EA-926
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    5um 1um Optical Linear Encoders With LCD Digital Readout System

    5um / 1um Optical Linear Encoders With LCD Digital Readout System


    Digital Readout Products Parameter

    1. Centering (1/2)
    2. Metric / inches Display (mm / Inch)
    3. Absolute / incremental (ABS / INC)
    4. 199 subdatum
    5. Reference Memory (REF)
    6. Clean Zero
    7. Pitch Circle Diameter (PCD)
    8. Line Hole Positioning (LHOLE)
    9. Simple “R” Function
    10. Smooth “R” Function
    11. Linear Error Compensation
    12. Non Linear Error Compensation
    13. INCL Function
    14. Axis Speed Display
    15. Display background color

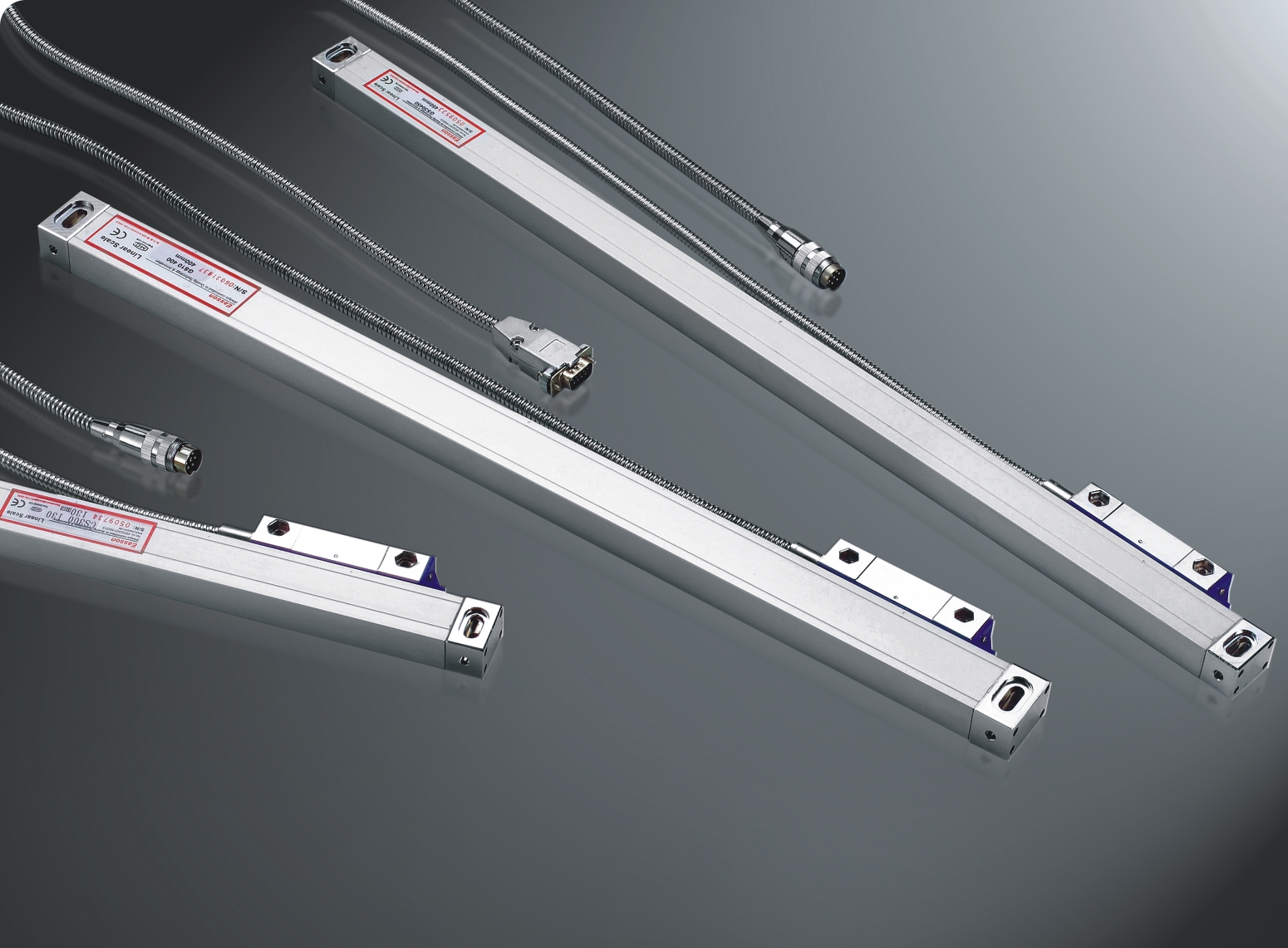

    Optical Linear Scale | Linear Scale | Optical Glass Scale Specification


    Features of Linear Scale | Aluminium Alloy Linear Encoder


    The linear encoder | linear scale | optical glass scale is a sensor, transducer of readhead fit for a grating glass that encodes position. The sensor reads the grating glass to convert the encoded position into an analog or digital signal which can be decoded into position by a digital readout (DRO) or controller. The encoder have two types, one is incremental and another is absolute. Easson GS series is the incremental scale.


    GS10GS11GS12GS13GS30GS31GS32GS33
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting systemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel100-1200mmEvery 50mm per length Spec.Every 50mm per length Spec.
    1300-3000mmNot availableEvery 50mm per length Spec. up to 500mm
    Accuracy100-450mm±8μm±5μm±8μm±5μm±8μm±5μm±8μm±5μm
    500-800mm±10μm±8μm±10μm±8μm--
    1050-2000mm±15μm±12μm±15μm±12μm--
    1300-3000mm----
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422

    Installation Dimensions



    GS10 / GS11 / GS12 / GS13 Series

    Easson GS20 1300-3000mm digital readout Linear Scale for machine tools


    GS30 / GS31 / GS32 / GS33 Series

    Easson GS20 1300-3000mm digital readout Linear Scale for machine tools


    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    Applications


    For typical applications of manual machine tools such as milling or lathes, resolution 10 µm or 5 µm is sufficient to meet the application requirements. The linear encoders of the GS10 and VS10 series provide such a resolution with an accuracy class of ± 10 µm within 1meter travel range.


    100% Laser calibration


    All Easson optical linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
