    0.1um Glass Scale Optical Linear Encoders for Lathe Machine

    Ask Lasest Price
    Brand Name : Easson
    Model Number : EA-926
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 SETS per Months
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    0.1um Glass Scale Optical Linear Encoders for Lathe Machine

    0.1µm Glass Scale Optical Linear Encoders for Lathe Machine


    The EA series has a 7 inch color LCD screen which provide inactive graphic display and step by step operation graphical guidance for all DRO functions, which makes EA-926 extremely user friendly, allow operators can implement all the powerful DRO function within few minutes after switch on the DRO.


    Purpose: It is matched with various sensors for measuring on machine tools and displaying the measured results in digital form.


    Products Parameter


    Centering (1/2)
    Metric / inches Display (mm / Inch)
    Absolute / incremental (ABS / INC)
    Power off Memory (30 subdatum)
    199 subdatum
    Reference Memory (REF)
    Zero
    Pitch Circle Diameter (PCD)
    Line Hole Positioning (LHOLE)
    Simple “R” Function
    Smooth “R” Function
    Linear Error Compensation
    Non Linear Error Compensation
    INCL Function
    Axis Speed Display
    Display background color


    Closed linear encoders can effectively prevent dust, chips and splash cutting fluid, which is ideal for machine tools


    Optical Linear Scale | Linear Scale | Optical Glass Scale Specification


    GS10GS11GS12GS13GS30GS31GS32GS33
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting systemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel100-1200mmEvery 50mm per length Spec.Every 50mm per length Spec.
    1300-3000mmNot availableEvery 50mm per length Spec. up to 500mm
    Accuracy100-450mm±8μm±5μm±8μm±5μm±8μm±5μm±8μm±5μm
    500-800mm±10μm±8μm±10μm±8μm--
    1050-2000mm----------
    1300-3000mm----
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422

    Installation Dimensions

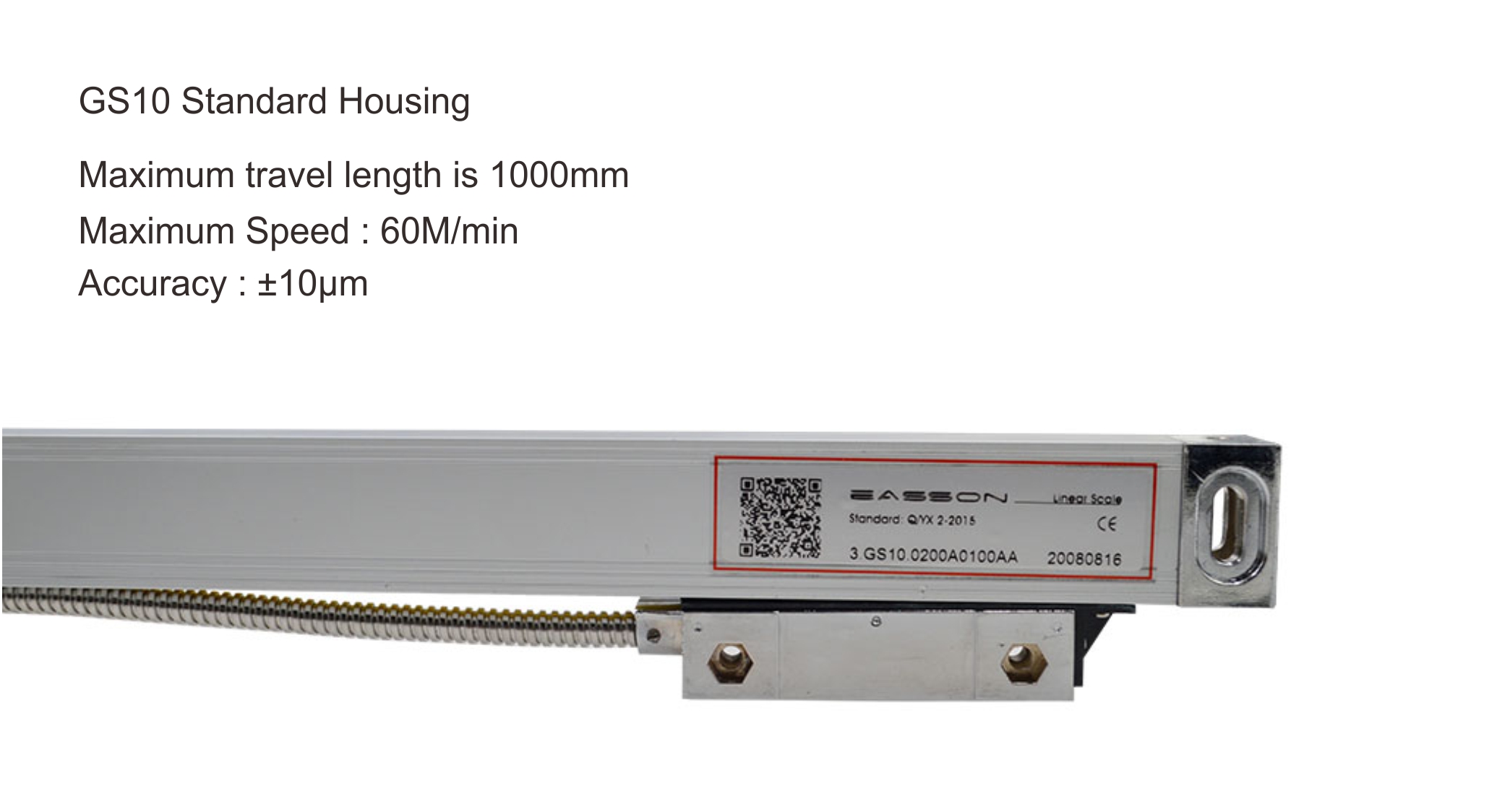

    GS10 / GS11 / GS12 / GS13 Series

    Easson GS20 1300-3000mm digital readout Linear Scale for machine tools


    GS30 / GS31 / GS32 / GS33 Series

    Easson GS20 1300-3000mm digital readout Linear Scale for machine tools


    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    100% Laser calibration


    Easson Each linear scale has undergone rigorous laser inspection and testing, and can provide accuracy test reports to ensure product quality and quality traceability.
