Fast & Accurate CNC Vision Measuring Network Control Systems With
0.01μm Absolute Scale
Product Introduction
The SP series CNC Automatic Vision Measuring Systems is used in
dimensional accuracy measurement of various metal, glass
inspection, mobile phone, scientific research, electronics,
hardware and plastic, precision metal stamping plate, screen
printing plate, PCB board, as well as for auxiliary measurements
such as reverse engineering graphic R & D, design, drawing
editing,laboratory inspection, etc..
Technical Specification
| Model | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 | 600 x 500 x 300 |
| Overall Dimension (mm) | 1200 x720 x 1600 | 1250 x 900 x 1600 | 1350 x 1000 x 1850 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 | 648 x 548 x 18 |
| Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | 2+L/150 |
| Repeatability(μm) | 2 |
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X |
| Axis Display Resolution | 0.00001mm (0.01μm) |
| Lighting System | Eight areas up light source with two laser positioning system |
| Operation Model | Automatic, control by mouse, joystick or keyboard |
| Lens | Automatic Zoom, automatic focus optical coaxial lens |
| Vision System | High-resolution SONY CMOS global shutter camera |
Characterisitics
1. Three axes of the resolution 0.01 μm Absolute Linear Scale are independent researched and developed by Easson
2. F3 high precision closed loop auto zoom lens.
3. The special designed motion controller of Vision measuring
machine using Ethernet transmission, which is efficient and
reliable system, can solve the disadvantage of unstable USB
transmission.
4. High-resolution SONY CMOS sensor of image processor to ensure
the image is clear and without smearing.
5. The up light source using eight areas partitioned independent
control lighting system, and the light-emitting element using
low-attenuation LED to extend working life.
6. Independent developed powerful 2D Measurement software, the
measurement results can be output to DXF, Word, Excel, PDF, CAD
etc..
7. High precision 00 grade marble base and pillar, to ensure high
stability and accuracy
AR Series Control System Features
- Adopt the single circuit board structure in order to greatly reduce
the number of wiring to improve reliability.
- Special purpose design the processor (ASP) to significantly reduce
the number of electronic circuits and parts to improve reliability.
- Ultra high speed grating scale reading circuit and built-in EAD
(absolute code decoder) allow AR series to use AS80 high precision
absolute scale, providing high precision, high resolution
measurement.
- High speed, energy saving, high precision fully closed-loop AC
servo control can provide positioning accuracy of up to 1um,
in order to minimize the possible factors affecting measurement
repeatability. - Comprehensive 21 kinds of high precision geometric stereo space
error compensation, providing the highest precision image and probe
measurement.
F3 high precision closed loop auto zoom lens
Features:
1. 3 million pixels high resolution lens
2. Fully closed-loop servo control eliminates gear transmission gap
and greatly improves the repeatability of the machine.
3. Full closed-loop position feedback, high definitive detented
zoom lens to ensure clear image without distortion
4. F3 lens comes with a coaxial light source to solve the problem
of insufficient illumination for deep hole measurement.
5. Fully closed-loop servo position feedback for fully automatic
focusing

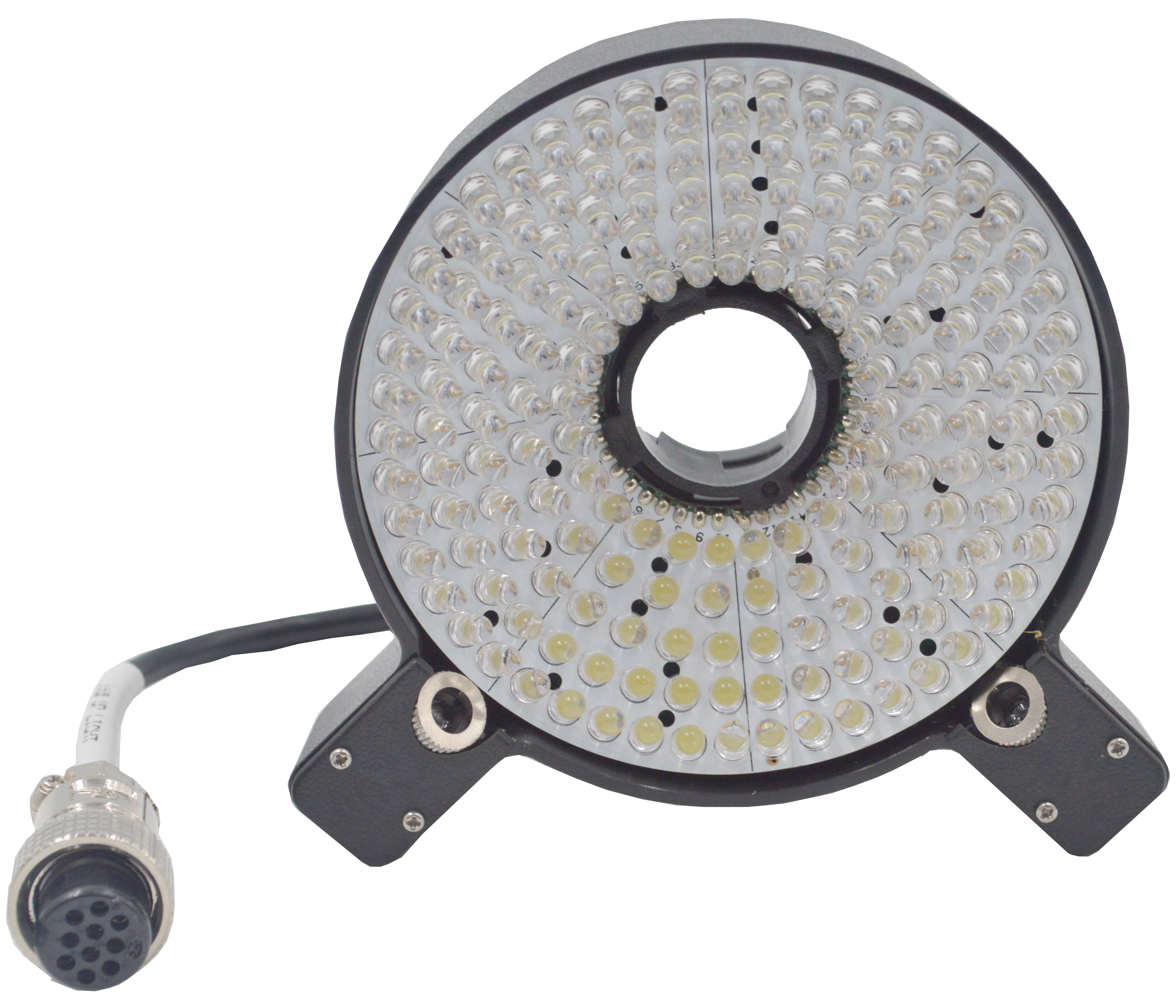

5 ring 8 area LED Cold Illumination and contour LED parallel
illumination and internal intelligent light adjustment
21 Orders Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network
control System which is included 21 orders volumetric compensation,
with Ultra-high-speed linear encoder reading and built-in EAD
(absolute scale decoder) allow AR series system to use our AS-80
high precision absolute scale, providing high accuracy and high
resolution measurement.
2D / 3D Multiple Measurement
Easson three series of vision measuring machines can cooperate with
the UK Renishaw high-precision touch probe for 2D / 3D multiple
measurement. The 3D measurement of the probe can be mixed with the
2D measurement of the imaging system. The same coordinate system is
used for 2D / 3D measurement in perfect and easy combination.
