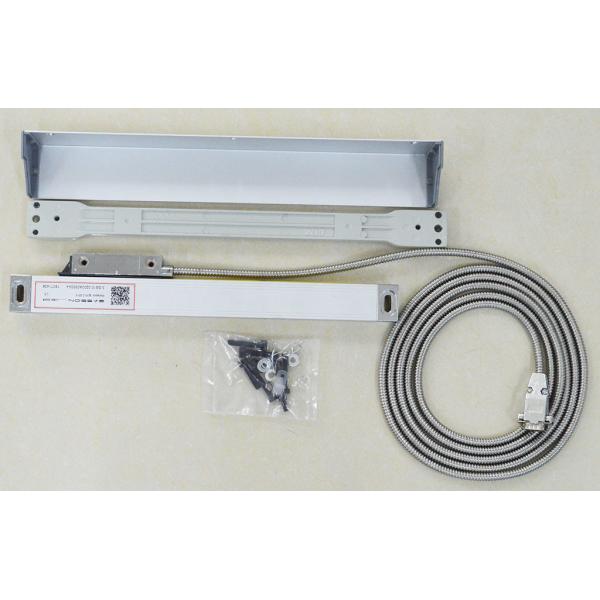

    Easson GS10 50-1250mm Glass Optical Linear Encoders Dro Scale

    Easson GS10 50-1250mm Glass Optical Linear Encoders Dro Scale


    For typical applications of manual machine tools such as milling or lathes, GS series provide such a resolution with an accuracy class of ± 10 μm within 1meter travel range.

    Advanced Optical Measuring System

    Reading head moves along the small friction guide rail of the grating ruler. The reading head is connected to the external mounting frame through the coupling. It can compensate for the inevitable alignment error between the grating ruler and the machine tool rail


    Double Seals Design

    The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.


    Product Specification


    GS10GS11GS12GS13GS30GS31GS32GS33
    Measuring StandardGlass Scale - Grating period: 20μm (0.02mm)
    Optical Detecting SystemTransmissive Infrared System: wave length 880mm
    Slide Carrier SystemVertical five bearings supporting systemVertical five bearings supporting system
    Resolution5μm1μm5μm1μm5μm1μm5μm1μm
    Measurement Travel100-1200mmEvery 50mm per length Spec.Every 50mm per length Spec.
    1300-3000mmNot availableEvery 50mm per length Spec. up to 500mm
    Accuracy100-450mm±8μm±5μm±8μm±5μm±8μm±5μm±8μm±5μm
    500-800mm±10μm±8μm±10μm±8μm--
    1050-2000mm±15μm±12μm±15μm±12μm--
    1300-3000mm----
    Repeatability2μm (0.002mm)
    Hystersis3μm (0.003mm)
    ProtectionIP 53
    Power supplyDC 5V ± 5%
    Output SignalTTLTTL422422TTLTTL422422



    Installation Dimensions



    GS10 / GS11 / GS12 / GS13 Series

    GS30 / GS31 / GS32 / GS33 Series



    Connector interface




    DSUB 9PIN

    PINTTL422A
    SignalCableSignalCable
    1————A-Yellow
    20VOrange0VWhite
    3————B-Red
    4GNDGNDGNDGND
    5————R-Black
    6AYellowAGreen
    75VRed5VBrown
    8BGreenBBlue
    9RBrownRGrey

    DIN 7PIN

    PINCableTTL
    1Orange0V
    2————
    3YellowA
    4GreenB
    5Red5V
    6BrownR
    7GroundGND
    CaseGroundGND

    100% Laser calibration

    Each glass ruler are rigorous calibrated by our in-house laser interferometer, and can provide accuracy test reports to ensure product quality and quality traceability.


    Accuracy report in QR code

    Each linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
