0.1µm Glass Scale Optical Linear Encoders for Lathe Machine

Products Description

Optical Linear Glass Scale 2 & 3 Axis Drilling Milling Machine Lathe Grinder Position Scale With Digital Readout

Easson ES14B 3 Axis multifunctional digital readout system software is universal solution for various kind of machining equipments, provides the most powerful and comprehensive professional DRO functions for various type of machine applications.

To Make it much more user friendly, the display message can be configured to one of the following languages:

1. ENGLISH, 2. CHINESE, 3. GERMAN, 4. SPANISH, 5. ITALIAN, 6. PORTUGUE, 7. ARABIC, 8. CZECH, 9. FRENCH, 10. HINDI, 11. INDONESIAN, 12. JAPANESE, 13. KOREAN, 14. PERSIAN, 15. ROMANIA, 16. RUSSIAN, 17. SWEDEN, 18. THAI, 19. TURKISH, 20. VIETNAMESE

Advanced Optical Measuring System

The slide carrier of the VS / VA series scales, use a five bearing design and six spring for optical grating linear transducer, ensure the VA scales not effected by installation, the spring can adjust the angle when the operator install not good for the alignment, so that it can reach a higer accuracy than one spring design reader head.

DSUB 9PIN

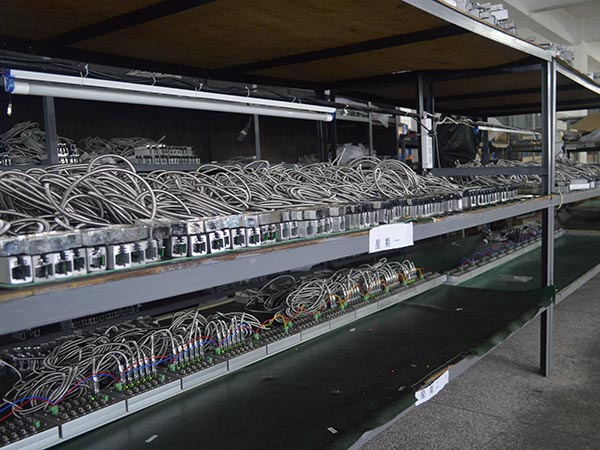

Aging Test

To ensure easson products quality is reliable, digital Readout system and linear scale's reader head need to power on for testing 3 x 24hours before QC inspection.

100% Laser calibration

All Easson optical linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.

What is an Optical Encoder?
This type of encoder uses an optical sensor to detect whether a light is on or off. The encoder is characterized by its ability to handle high precision and strong magnetic fields.

Optical encoders include reflective, transmissive, and diffractive grating types. Due to the use of ultra-thin stainless steel plates or glass discs as rotating discs, mechanical vibration and shock can be an issue.

number. optical encoder

Optical encoders are widely used as high-precision position control sensors in office equipment, machine tools, and industrial robots. In recent years, reflective encoders have been used in ultra-small actuators and collaborative robots that require little space.

Easson was established since 1995.It is a high-tech enterprise specializing in design and manufacturing of precision measuring equipment, obtained more than 20 national invention and utility model patents. Our product field in DRO systems, precision optical profile projectors, video measuring machine and etc..

Easson's factory building is specifically design and built for the manufacturing of precision measuring equipment, has four Laser interferometers for being the company's length measurement standard and R&D.

Easson is one of the few companies in the industry that has its own high-precision grating master which use own fully-developed grating master lithography equipment, produce the absolute linear encoder and high accuracy CNC linear encoder.

Our quality management system has been assessed and registered by National Quality Assurance Ltd.(NQA) against the provision of ISO 9001:2015.

Strong Technical Capabilities And Scientific Research Resources

Over the years, the company has established a very close and effective cooperative relationship with scientific research institutions such as Xi'an Jiaotong University and Jilin University, taking advantage of the abundant talents and theoretical advantages of university scientific research institutions, combined with the company's long-term accumulated technology and practical experience in this industry , so that we have created many products that are leading the domestic industry.

In addition, the company actively participates in the scientific research and industrialization projects issued by the state and Zhuhai City.

For example, in 2011, the company participated in the "High-end CNC Machine Tools and Basic Equipment" led by Xi'an Jiaotong University and issued by the Ministry of Industry and Information Technology of China "Science and Technology Major Project. And combined with Tianjin University, Hefei University of Technology, Chinese Academy of Metrology... and other units jointly developed.

The company's AS-40 series grating ruler is one of the results of this project, which is industrialized by our company. And our company's EC-2 Pseudo-random absolute coding is one of the project achievements jointly developed by our company and Jilin University.

Actively participate in industry standard setting

Easson Measurement Technology Ltd. is one of the core members of the Digital Display Sub-Standard Committee of the National Measuring Tool and Measuring Instrument Standardization Technical Committee of China.

For a long time, it has actively participated in the formulation of various standards in the industry, and introduced the most advanced international standards in the industry. standards, and work together with peers to promote the development of the industry.

The company participated in the drafting of many national and industry standards, such as industry standard JB/T 10080.1-2011 "Graster Digital Display Instrument", JB/T10080.2-2011 "Graster Linear Displacement Sensor", etc. JB/T 11505-2012 "Displacement Sensor" Encoder CPE-Bus bidirectional serial communication protocol specification".....
